TiLite Aero Z Series 2 - TiLite Rigid Wheelchairs

Aero Z Series 2

4.6

19 reviews 89% of reviewers recommend this!

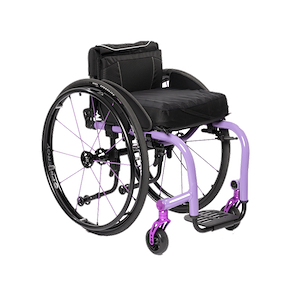

The Mono-Tube design design keeps the Aero Z light in weight and also makes it a very easy chair to transport in your car.

Overview
+
-
Features
- Tru-Fit system for easy center-of-gravity adjustments
- Slipstream single-sided forks with integrated bumpers
- Lightweight T6 Aluminum frame
Key Specs
- Quick-Release Axles: Yes
- Weight capacity: 265 lbs.
- Starting Weight: 12.4 lbs.
- View All Specs
Manuals, Literature & Videos for the Aero Z Series 2
Overview of the Aero Z Series 2

The all new TiLite Aero Z Series 2 chair features lightweight and better performing components than most other chairs. The Performance 5-Spoke Soft Roll Wheel weighs just 1.6 ounces, shaving 40% off of the original 3-Spoke Wheel and the Speedloader Adjustable Front Caster Housing quickly and accurately adjusts the fork angle in 1º increments. The chair itself weighs just 12.4 pounds without wheels or wheel locks and the whole chair is custom built to your specifications in no time at all.

*Weight is based on a 16" x 16" wheelchair and all standard features except rear wheels and wheel locks. For reference, a pair of standard 24" rear wheels weighs 7.6 lbs. and a pair of standard wheel locks weighs 0.9 lbs.

Looking for the old Aero Z Series 1?

Measuring Guide

View Detailed Measurement Guide

Seat Depth¹

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

Back Height²

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

Rear Seat to Floor³

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

Hanger Angle⁴

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

Seat Width⁵

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

Wheel Camber⁶

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

Front Seat to Floor⁷

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

Footrest Width⁸

Measure from the inside of each legrest tubing the distance or desired distance between legrests.

Center of Gravity⁹

Measure from the front of the seat back post to the center of the rear axel.

Seat to Footrest Length¹⁰

Measure from the edge of the seat upholstery to the top rear of the footrest.

Backrest Angle¹¹

Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.

More Information on the Aero Z Series 2
- See also:
- Details & Specs
- Reviews
- Warranty
- Returns

Specs

Specifications for the Aero Z Series 2

Seat Widths:	10" 11" 12" 13" 14" 15" 16" 17" 18" 19" 20"
Product Weight:	12 lbs.
Legrest Options:	Fixed
Seat to Floor Heights:	16" to 21"
Frame Type:	Rigid
Seat Depths:	10" 11" 12" 13" 14" 15" 16" 17" 18" 19" 20"
Hemi Height Option:	Yes
Back Height:	9" 10" 11" 12" 13" 14" 15" 16" 17" 18" 19" 20" 21"
Angle-adjustable Back:	No
Fold-down back for easy transport:	Yes
Reclining Back Option:	No
Rear Wheel Size:	20" 22" 24" 25" 26"
Camber Angle:	0 ° to 18 °
Pneumatic (air-filled) tire option:	Yes
Quick-Release Axles:	Yes
One-Arm Drive Option:	No
Upholstery Options:	Yes
Armrest Options:	Fixed Height Height Adjustable Removable Swing Away
Removable Legrests:	No
Expedited Shipping Available:	Yes
Product Weight Range:	15 lbs or less

Approximate Shipping Dimensions and Weights

Product Weight:	12.4 lbs.
Box 1
Shipping Weight:	30.00 lbs.
Length:	25.00"
Width:	34.00"
Height:	23.00"

Manuals & Literature

More Information on the Aero Z Series 2

Reviews
+
-
Aero Z Series 2 Reviews

4.6
Rating Breakdown

Rating Breakdown

5 star

73%

(14)

4 star

21%

(4)

3 star

5%

(1)

2 star

0%

(0)

1 star

0%

(0)

89% of reviewers recommend this!

Features

(4.6)

Quality

(4.7)

Ease of Use

(4.6)

Meets Expectations

(4.4)

These reviews are from SpinLife customers who have purchased and used the Aero Z Series 2.

Customer Reviews

Showing:

View All Reviews
More Information on the Aero Z Series 2
- See also:
- Overview
- Details & Specs
- Warranty
- Returns
Warranty
+
-
Warranty Information for the Aero Z Series 2
A. FRAME - LIFETIME

   TiLite warrants the wheelchair frame (including the cross-braces, if any) against defects in materials andworkmanship for the lifetime of the original user of the wheelchair. The expected
life of the frame is five years. TiLite warrants all TiLite-made wheelchair components (including, but not limited to, armrest assemblies, backrest, assemblies, footrest assemblies,
camber tubes and plugs and caster forks) against defects in materials and workmanship for one (1) year from the date of purchase, except as provided below.

B. COMPONENTS - ONE (1) YEAR

C. LIMITATIONS AND EXCLUSIONS

   This warranty does not cover:

      a. tires and tubes for front or rear wheels, upholstery (including cushions, seat slings, backrest upholsteryand armrest upholstery), or push-handle or stroller handle grips; or

      b. damage arising from normal wear and tear or from other circumstances beyond TiLite’s control; or

      c. any labor or shipping charges incurred in replacement part installation or repair of this product; or

      d. TiLite Designs Unlimited frames and frame components, unless TiLite, in its sole discretion, determines that the Designs Unlimited frame or frame component was defectively manufactured.

   This warranty is VOID if TiLite, in its sole discretion, determines that:

      a. the original TiLite serial number tag has been removed, altered or defaced; or

      b. the wheelchair has been subjected to negligence, accident, improper maintenance, storage or operationas required by your TiLite Owners Manual, commercial or institutional use, misuse or abuse, including,but not limited to, exceeding the maximum weight limit of 250 pounds or using the wheelchair with tie downs or locking, clamping or other restraint systems related to the use of the wheelchair in a motor vehicle; or

      c. the wheelchair has been damaged by improper repairs or repairs made to any component without the express written consent of TiLite; or

      d. the wheelchair has been modified without TiLite’s express written consent, including, but not limited to, modification through the use of unauthorized parts or attachments.

   This warranty applies only to the original intended user of the wheelchair.

D. OUR RESPONSIBILITY

   TiLite’s sole responsibility is to repair or replace, in our sole discretion, the covered components of the wheelchair.

E. FOR WARRANTY SERVICE

   Contact a customer service representative from Spinlife.com
More Information on the Aero Z Series 2
- See also:
- Overview
- Details & Specs
- Reviews
- Returns
Returns
+
-
SpinLife Return Policy for the Aero Z Series 2
This item is non-returnable for one of the following reasons:
- This item is custom-made by the manufacturer to suit your specific needs . Please review all specifications carefully before placing your order. Once production of your item has begun – the order is unable to be cancelled.
- For hygienic safety and per FDA regulations this item is non-returnable, even if unused.
- Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.
If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
