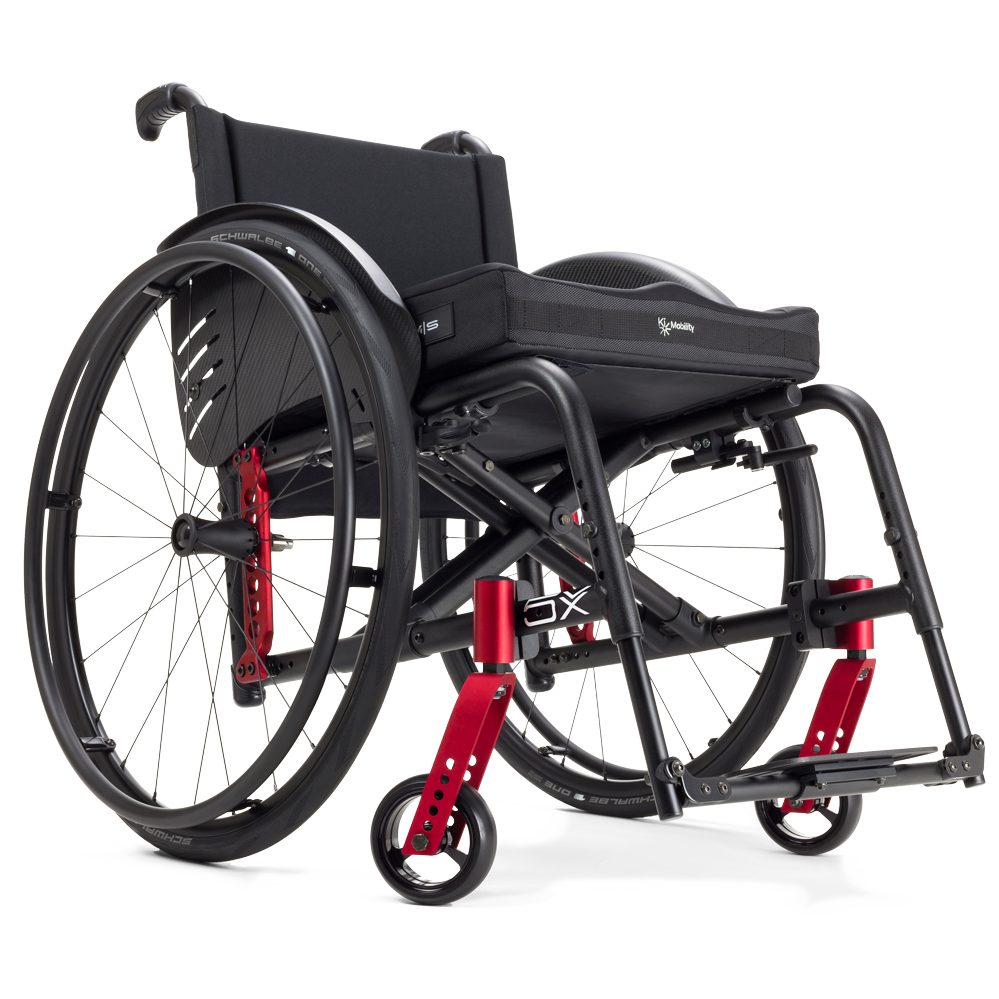

Catalyst 5Vx
Everything that’s great about the Catalyst 5 with an upgraded axle plate and adjustable camber.
Ki Mobility
(Model No. Catalyst 5Vx)
Product OverviewThe SpinLife Difference Includes:
Easy-To-Fold Design
Lifetime Limited Warranty
Made in the USA
FREE Shipping
Price Match Guarantee
Features
- Newly Designed Axle Plate
- Improved Center of Gravity Adjustability
- Adjustable Camber
- Transit Wheels Option
- Lifetime Warranty for Legrests
Key Specs
- Quick-Release Axles: Yes
- Weight capacity: 300 lbs.
- Starting Weight: 18.9 lbs.
Manuals, Literature & Videos
Overview
The Catalyst 5Vx is Ki Mobility’s Catalyst 5 with a newly designed axle plate and an adjustable camber tube. The Catalyst 5Vx is made from the ultra-light, high-strength 7000 series aluminum. This alloy dampens vibrations to provide a smoother and more comfortable ride. You also have the option to upgrade the frame or cross brace to titanium. Ki Mobility’s uniquely designed cross brace provides the feel of a rigid frame wheelchair with the convenience of a folding frame. The Catalyst line offers a Dual Interlocking Cross Brace. This design creates a frame that locks together so that it minimizes unwanted movement and maximizes the energy transferred in each of your pushes making your push as efficient as possible. The “Between-The-Rails” Seat Design has the seat frame tubing setting side-by-side rather than stacking them atop one another. Instead of the weight of the user resting on the cross brace, the weight is transferred to the side frames. This prevents having to use heavy cross braces which add weight to other manufacturer’s wheelchairs.
Even how the Catalyst 5Vx folds and unfolds is unique. A Power X-Hinge is an extending link from the frame to the cross brace that expands and contracts when the frame is opening or closing. Another benefit of the Power X-Hinge is how it improves the frame’s structural integrity. The extending link provides the frame’s strength and rigidity rather than the seat upholstery. The Power X-Hinge works so well your Catalyst 5Vx will be just as solid with or without the seat upholstery.
Not to be forgotten are Ki Mobility’s one of a kind legrests. The legrests can be mounted or removed from any angle. No need to rotate all the way or all the way out like those from other manufacturers.
What Makes This Different
The Catalyst 5Vx’s focus is providing better adjustments for center of gravity, rear seat to floor height, and rear wheel camber. The newly designed axle plate and rear frame provide you 2” of center gravity adjustment in ½” increments. The center of gravity is what really gives you control over your wheelchair’s responsiveness. The higher the number for center of the gravity, the more responsive and easier to push the wheelchair becomes. Lower numbers for the center of gravity create a more stable wheelchair. The new axle plate also gives you 5” for your rear seat to floor height. All these available adjustments create less effort in propelling your wheelchair and create a better ride. A brand-new adjustable camber is standard so there is no additional charge for this feature. The 5Vx gives you 5 camber degree options from 0° to 4°. A 0° camber makes the overall width of your 5Vx as narrow as possible where 4° of camber widens your base making the wheelchair nimbler and more responsive.
Why We Like It
There are two options on the 5Vx that really make it appealing. You can add a transit wheel option to your 5Vx. The transit wheels can be inserted into the rear frame of the wheelchair after removing the standard rear wheels. These smaller transit wheels make the wheelchair considerably more compact and easier to maneuver in tight or narrow spaces. The transit wheels can be a great option for travelers who may find themselves in hotel rooms not accommodating to a typical wheelchair. The Catalyst 5Vx also offers you the option for a fixed front frame. So, if you prefer fixed legrests over swing away but still want a folding frame, this is the option you will want. The fixed front end will further enhance the responsive feel of a Catalyst 5Vx making it perform even more like a rigid frame model.
Measuring Guide
View Detailed Measurement Guide
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
- Back Height2
- Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
More Information on the Catalyst 5Vx
See also:
Specs
| Transport Weight: | 13.9 |
| Weight Capacity: | 300 |
| Seat Widths: |
14" 15" 16" 17" 18" 19" 20" 21" 22" |
| Product Weight: | 18 lbs. |
| Legrest Options: |
Elevating Fixed Swing Away |
| Quick-Ship: | No |
| Seat to Floor Heights: | 13.5" to 21" |
| Seat Depths: |
14" 15" 16" 17" 18" 19" 20" |
| Front Seat to Floor Height: | 13.5" to 21" |
| Rear Seat to Floor Height: | 11.5" to 20" |
| Angle-adjustable Back: | Yes |
| Reclining Back Option: | Yes |
| Rear Wheel Size: |
20" 22" 24" 25" 26" |
| Pneumatic (air-filled) tire option: | Yes |
| Quick-Release Axles: | Yes |
| One-Arm Drive Option: | No |
| Upholstery Options: | Yes |
| Armrest Options: |
Fixed Height Flip Back Height Adjustable Removable Swing Away |
| Product Weight Range: | 15 lbs to 20 lbs |
Approximate Shipping Dimensions and Weights
| Product Weight: | 18.9 lbs. |
Catalyst 5Vx Reviews
100% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the Catalyst 5Vx.
Customer Reviews
Showing:
More Information on the Catalyst 5Vx
See also:
Warranty Information
Limitations to the Warranty
1. We do not warrant:
a. Wear items: Upholstery, tires, armrest pads, tubes, armrests and push-handle grips.
b. Damage resulting from neglect, misuse or from improper installation or repair.
c. Damage from exceeding weight limit.
2. This warranty is VOID if the original chair serial number tag is removed or altered.
3. This warranty is VOID if the original chair has been modified from its original condition and it is determined that the modification resulted in failure.
4. This warranty applies in the USA and Canada only. Check with your supplier to find out if international warranties apply.
Ki Mobility’s Responsibility
Ki Mobility’s only liability is to replace or repair, at our discretion, the covered parts. There are no other remedies, expressed or implied.
Your Responsibility
a. Notify Ki Mobility, via an authorized supplier, prior to the end of the warranty period and get a return authorization (RA) for the return or repair of the covered parts.
b. Have the supplier send the authorized return, freight pre-paid, to:
Ki Mobility
5201 Woodward Drive
Stevens Point, WI 54481
c. Pay any charges for labor to repair or install parts.
