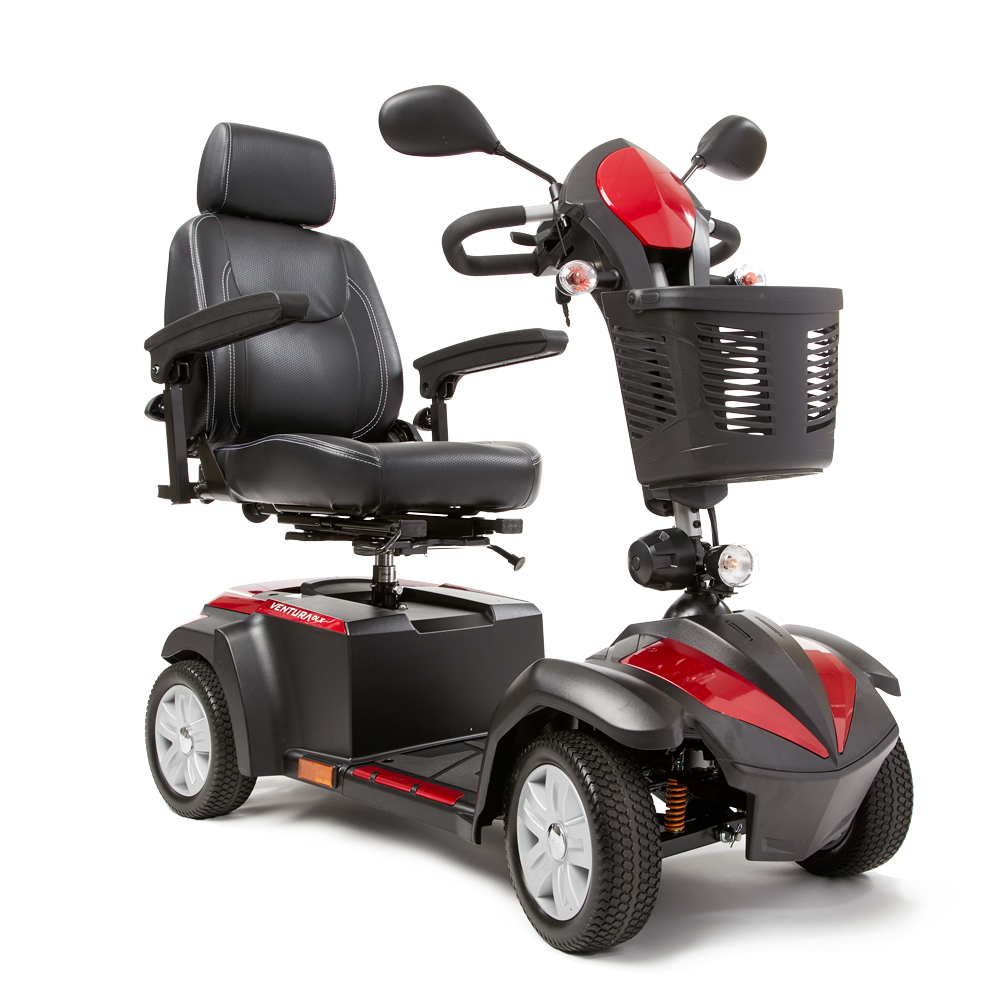

Drive Medical Ventura DLX 4-Wheel - Drive Medical 4-Wheel Full Size Scooters

Overview
+
-
Features
- 18" or 20" wide captain's seat for maximum comfort
- Seat is height adjustable and can slide and swivel
- Full lighting package includes headlight, turn signals and rear parking light
- Dual rearview mirrors for safety
- Up to 16 miles of driving range
Key Specs
- Top Speed: 6.00 mph
- Drive Range: 16.00 miles
- Heaviest Piece: 99 lbs.
- Weight capacity: 400 lbs.
- Weight: 206 lbs.
- View All Specs
Manuals, Literature & Videos for the Ventura DLX 4-Wheel
- Brochure
- Owner's Manual
Overview of the Ventura DLX 4-Wheel

The Ventura DLX is a versatile scooter that is good looking and feature-rich. The 4 wheel Ventura DLX provides additional stability and traction for rougher outdoor terrain. Interchangeable panels in red and blue are included so the user can quickly modify the scooter's sporty appearance.

What Makes This Different
The Ventura DLX offers an array of flexible features such as the sliding captain's seat that can be moved back or forward by using auto-styled seat slides. The comfortable seat can be ordered in the standard 18", or upgraded 20" width. It also swivels for easy access. Padded armrests can be flipped up or removed altogether. The controls are ergonomically designed for riders who may have limited strength or dexterity while maintaining a sleek and sporty appearance. For outdoor safety, the Ventura DLX comes with a complete lighting package which includes a headlight, front and rear turn signals, and rear parking lights.

Why We Like It
Powerful 36 AH batteries offer long-range stamina with up to 16 miles on a single charge! We also like the added security that comes with two rear-view mirrors and rear anti-tip wheels. This indoor/outdoor scooter is perfect for people on the go!

What You Need to Know When Ordering
Curbside Delivery is free. The Ventura DLX ships in a single heavy box. You may want to arrange for a friend or family member to help you to get the scooter unpacked and set up. If you need extra assistance, Inside Delivery and White Glove Delivery are available for an extra charge. See the details at right.

The Batteries are not hooked up when the scooter is shipped. The battery connections must be attached and the batteries charged for 8 hours upon delivery, and you have to install the seat on the seat post..

More Information on the Ventura DLX 4-Wheel
- See also:
- Details & Specs
- Reviews
- Warranty
- Returns

Specifications for the Ventura DLX 4-Wheel

	18" Seat	20" Seat
Top Speed:	6.00 mph	6.00 mph
Turning Radius:	54"	54"
Drive Range:	16.00 miles	16.00 miles
Weight Capacity:	400.00 Lbs	--
Heaviest Piece:	99 lbs.	99 lbs.
Ground Clearance:	2.50"	2.50"
Max Incline Rating:	7.5 °	7.5 °
Disassembles:	Yes	No
Delta Tiller:	Yes	Yes
Seat Width:	18" 20"	20"
Back Height:	18"	18"
Max Seat to Ground Height:	24"	24"
Max Seat to Deck Height:	22.5"	22.5"
Power Elevating Seat:	No	No
Height Adjustable Seat:	Yes	Yes
High-Back Seat:	Yes	Yes
Armrest Options:	Flip-Back Width Adjustable	--
Flip-Back Armrests:	Yes	Yes
Wheel Type:	Four Wheeled	Four Wheeled
Front Wheel Size:	10"	10"
Rear Wheel Size:	10"	10"
Air-Filled (Pneumatic) Tires:	No	No
Overall Width:	24.75"	24.75"
Overall Length:	48"	48"
Transportable/Collapsible:	No	No
Foldable:	No	No
Battery Type:	12V x 36AH	Two 12V x 36AH
Batteries Included:	Yes	Yes
Battery Charger Type:	Off Board	Off Board
Motor Size:	24V x 350W x 5100rpm	24V x 350W x 5100rpm
Drive Type:	Rear-Wheel Drive	Rear-Wheel Drive
Suspension:	Yes	--
Braking System:	Electromagnetic	Electromagnetic
Basket Included:	Yes	Yes
Headlight:	Yes	Yes
Weight Without Batteries:	139.00 lbs.	160.00 lbs.
Battery Pack Weight:	46.00 lbs.	46.00 lbs.
Seat Section Weight:	40.00 lbs.	40.00 lbs.
Base and Tiller Weight:	99.00 lbs.	120.00 lbs.
Expedited Shipping Available:	No	No
Charging Port Location:	Tiller	--

Approximate Shipping Dimensions and Weights

Product Weight:	206 lbs.
Box 1
Shipping Weight:	236.00 lbs.
Length:	60.00"
Width:	24.50"
Height:	25.00"

Manuals & Literature

More Information on the Ventura DLX 4-Wheel

Reviews
+
-
Ventura DLX 4-Wheel Reviews

4.7
Rating Breakdown

Rating Breakdown

5 star

79%

(42)

4 star

20%

(11)

100% of reviewers recommend this!

Features

(4.6)

Quality

(4.7)

Ease of Use

(4.5)

Meets Expectations

(4.6)

These reviews are from SpinLife customers who have purchased and used the Ventura DLX 4-Wheel.

Customer Reviews

Showing:

View All Reviews
More Information on the Ventura DLX 4-Wheel
- See also:
- Overview
- Details & Specs
- Warranty
- Returns
Warranty
+
-
Warranty Information for the Ventura DLX 4-Wheel

Drive Medical Limited Lifetime Warranty

If you have a problem with your scooter, simply call one of our expert customer service representatives; Spinlife.com will have the parts shipped directly to you - free of charge. Every effort will be made to return your scooter to working condition in the shortest time possible. The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.

Lifetime Limited Warranty - Product Frame, Seat Post, Platform, Frame Welds

14 Months Limited Warranty - Electronic Controller, Motor/Gearbox Assembly

Six Month Warranty - Batteries

The following are warranted to be free of defects in materials and workmanship at time of delivery and are not included in any additional warranties:

Plastic Shrouds and Footrests, Upholstery and Seating, Armrest Pads, Tires and Tubes, Anti-Tip Wheels, Floor Mats, Plastic Connections, Metal Connection Pins, Hardware, Nuts and Bolts, Brake Pads, Front Rigging Mounting Brackets and any other piece that is not listed in the above warranty.

The warranty does not apply if the unit has been altered in any way, misuse or accident has occurred, batteries were not properly stored, exceeding the weight limit of the unit and acts of nature.

New or refurbished parts may be used.
More Information on the Ventura DLX 4-Wheel
- See also:
- Overview
- Details & Specs
- Reviews
- Returns
Returns
+
-
SpinLife Return Policy for the Ventura DLX 4-Wheel This item is covered by the SpinLife "Best on the Web" 30-Day Return Policy.
As stated in the full Return Policy, this item may be returned within 30 days of receipt for a full refund as long as the following conditions are met:
- The item must be returned at the customer’s expense in the original packaging.
- The item must be in new condition--no cracks, scratches or dirty tires.
- A Return Authorization must be requested from SpinLife within 30 days of delivery.
- Once the Return Authorization has been received from SpinLife, the product must be returned within 14 days to receive a refund.
If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
