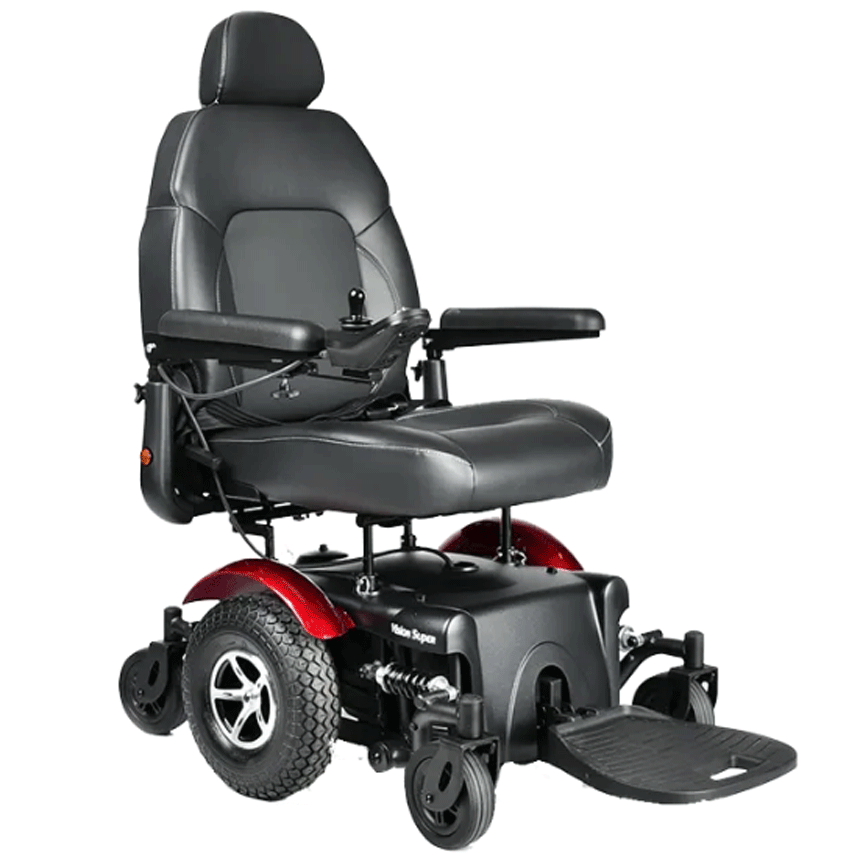

Vision Super Heavy Duty Power Chair
A heavy duty power wheelchair with an ultra-durable design and an option for a power elevating seat that will raise the user up to 10".
The SpinLife Difference Includes:
FREE Batteries
Free Shipping for Orders over $50
Free Accessory Bracket
Lifetime Limited Warranty
White Glove Available
FREE Shipping
White Glove Available
Price Match Guarantee
Features
- Full front and rear suspension
- Mid-wheel, highly maneuverable driving
- Weight Capacity: up to 450 lbs
- Range: 20 miles
- Optional seat elevator for 10" of lift *reduces weight capacity to 400 lbs.
- Real mid-wheel drive design for tight space maneuverability
Key Specs
- Drive Range: 20.00 miles
- Top Speed: 5.00 mph
- Heaviest Piece: 121 lbs.
- Turning Radius: 20.70"
- Weight capacity: 450 lbs.
- Weight: 243 lbs.
Manuals, Literature & Videos
Overview
The Vision Super Heavy Duty Power Chair by Merits Health brings the convenient and tight maneuvering of a mid-wheel power chair to a heavy duty power chair. Ideal for users needing a higher weight capacity, the Vision Super Heavy Duty Power Chair will help you maintain your independence while going the distance.
What Makes This Different
The Vision Super Heavy Duty Power Chair was designed with durability and comfort in mind. The full front and rear suspension and 12-inch pneumatic drive wheels give you a smooth ride while easily negotiating different types of terrain. The 22-inch wide Captain’s Seat with a semi-reclining backrest ensures you stay supported and comfortable while driving up to 20 miles in a single charge.
The Vision Super Heavy Duty also offers an optional power seat upgrade that provides a full 10" of elevation, raising from 24" off the ground up to 34". The power elevating seat must be ordered with a 20" wide seat and offers a weight capacity of 400lbs. High up shelves, tall counters, and so many other items that once seemed out of your reach, are now accessible!
Why We Like It
Maneuverability and drivability are not compromised by the Vision Super’s heavy duty construction. The mid-wheel power chair features a tight, 20.7-inch turning radius, allowing you to maneuver in smaller spaces with ease. The dual in-line motors of the Vision Super Heavy Duty Power Chair ensure enhanced torque, efficiency and performance.
What You Need To Know When Ordering
Your power chair is shipped free with our residential delivery. With this delivery option, the chair will be shipped to your home. You may require additional assistance getting your power chair into the home and assembled.
**Adding the optional, power elevating seat decreases the weight capacity to 400lbs.
Measuring Guide
 |
|
 |
|
 |
| Seat
Depth1 Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg. Back Height2 Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration. Hanger Angle3 Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular. Seat Width4 Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant. Front Seat to Floor5 Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never foot-propelled by the user - so excluding the additional two inch footrest height for propelling is very rare. |
More Information on the Vision Super Heavy Duty Power Chair
See also:
Specs
| Drive Range: | 20.00 miles |
| Top Speed: | 5.00 mph |
| Disassembles: | No |
| Heaviest Piece: | 121 lbs. |
| Turning Radius: | 20.70" |
| Ground Clearance: | 2.20" |
| Tire Type: | Solid |
| Maximum Incline Rating: | 8 ยบ |
| Drive Type: | Mid Wheel Drive |
| Foldable: | No |
| Armrest Options: |
Height Adjustable Flip-Back Width Adjustable |
| Legrest Options: |
Footplate Upgradable Elevating Legrests |
| Seat Options: |
High-Back Seat Power Elevating Seat |
| Power Chair Seat Width: | 22" |
| Seat Depths: | 22" |
| Back Height: | 20" |
| Seat to Floor Height: | 23.5" - 25.5" |
| Overall Width: | 27.20" |
| Overall Length: | 35.40" |
| Joystick Options: |
Right Left Swing-Away |
| Adjustable Hanger Brackets: | No |
| Battery Type: | Two 12V, Group 22 |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Wheel Size: | 12" |
| Caster Size: | 6" |
| Rear Caster Size: | 6" |
| Caster Type: | Solid |
| Base Weight: | 121.00 lbs. |
| Standard Seat Weight: | 46.00 lbs. |
| Battery Pack Weight: | 76.00 lbs. |
| Weight Without Batteries: | 205.00 lbs. |
| Controller Type: | Dynamic Shark 60A |
| Handles Thresholds of 2" or More: | Yes |
| Handles Thresholds of 2" or Less: | Yes |
| Seat Width Ranges: | 22" - 23" |
Approximate Shipping Dimensions and Weights
| Product Weight: | 243 lbs. |
| Box 1 | |
| Shipping Weight: | 271.00 lbs. |
| Length: | 43.00" |
| Width: | 29.00" |
| Height: | 27.00" |
Vision Super Heavy Duty Power Chair Reviews
100% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the Vision Super Heavy Duty Power Chair.
Customer Reviews
Showing:
More Information on the Vision Super Heavy Duty Power Chair
See also:
Warranty Information
Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).
For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
More Information on the Vision Super Heavy Duty Power Chair
See also:
Return Policy
- The following conditions apply:
- This item has a 20% Restocking Fee.
- You are responsible for the cost of return shipping. The product must new and unused and in the original packaging.
- All accessories and items that were included in the box must be returned.
- Items canceled after the product has already shipped will be considered a return.
- Delivery and service fees are not refundable.
- Mattresses ordered with beds are non-returnable.
- Custom-made by the manufacturer to suit your specific needs are non-returnable.
- An RA (Return Authorization) from SpinLife must be requested within 30 days of delivery.
- The item must be shipped back to the address noted on the RA within 15 days.
- Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.
- If delivered by a technician and delivery slip is signed and accepted the item is unable to be returned.
