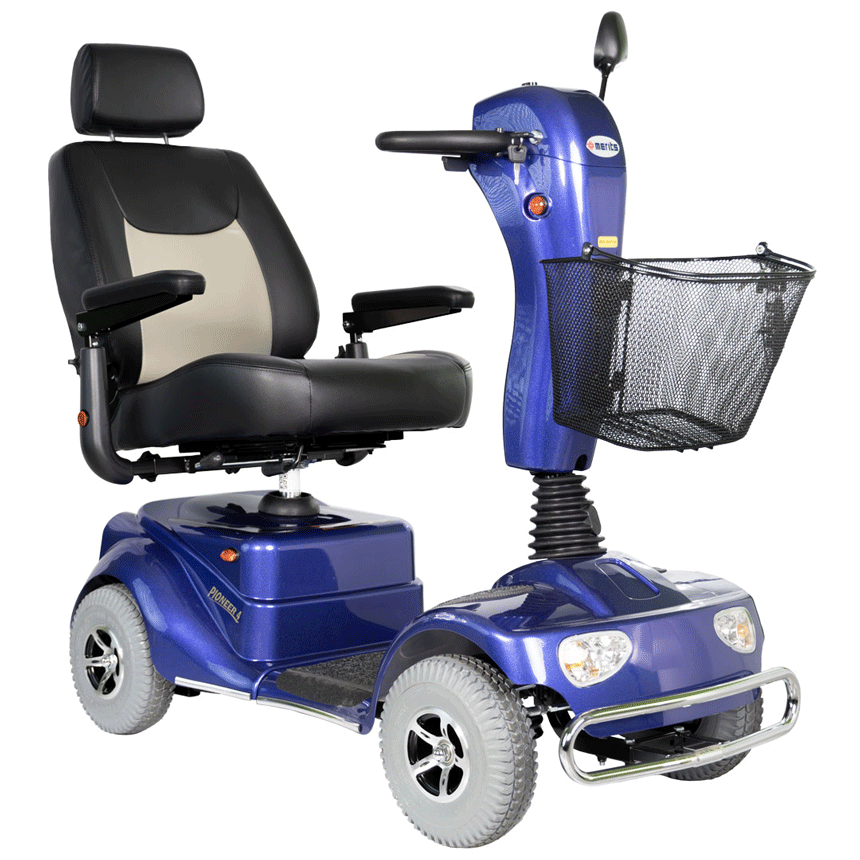

Pioneer 4

Up to 400 lb weight capacity and high torque drivetrain makes for a powerful scooter

NEED HELP OR ADVICE?

Our Product Experts are here for you

1-800-850-0335

Merits Health

(Model No. S141)

Product Overview
$2,481.00
$4224
Customize

The SpinLife Difference Includes:

FREE Shipping

Charger

Front Basket

Lifetime Limited Warranty

SHIPPING INFORMATION:
Leaves Warehouse In:
1-2 Business Days Details
Ground Shipping:
FREE for orders over $50!
Expedited Shipping:
GO
2nd Day: $0.00
Overnight: $0.00
Unavailable
SHIPPING INFORMATION
Leaves Warehouse In:
1-2 Business Days Details
Ground Shipping:
FREE for orders over $50!
Expedited Shipping:
GO
2nd Day: $0.00
Overnight: $0.00
Unavailable
OVERVIEW

Features

  • Front shopping basket Included!
  • Weight Capacity: up to 400 lbs.
  • Adjustable captain seat
  • Optional 5" power elevating seat
  • Steel front bumper to protect shroud
  • Padded armrests height, width, and angle adjustable
  • Headlight, tail lights, and hazard lights for safety

Key Specs

  • Drive Range: 18
  • Max Speed: 5.00 mph
  • Heaviest Piece: 97 lbs.
  • Weight capacity: 400 lbs.
  • Weight: 189 lbs.
View all specs

Manuals, Literature & Videos

Overview

The Pioneer 4 Scooter by Merits, provide individuals with limited mobility the freedom and independence to move comfortably both indoors and outdoors. The Pioneer 4 Scooter combines functionality, convenience, and safety features to enhance the overall mobility experience. It is built with a sturdy and durable frame, designed to handle various terrains and provide stability during rides. Features include a captains seat for comfortability, flip up armrests are height, angle and seat width adjustable.

Why We Like It

The Pioneer 4 Scooter is designed with a compact and agile design, making it easy to navigate through narrow hallways and crowded spaces. It offers a tight turning radius of 39", allowing users to maneuver effectively in tight corners and small spaces. It has 10"  foam filled tires that provide a smooth and comfortable ride on uneven surfaces, such as sidewalks or gravel paths. Making it suitable for indoor and outdoor use.

More Information on the Pioneer 4

SPECS

Specs

Max Speed: 5.00 mph
Scooter Disassembles: No
Scooter Drive Range: 18.00 miles
Heaviest Piece: 97 lbs.
Suspension: No
Scooter Seat Width: 20"
Weight Capacity: 400 lbs
Turning Radius: 52"
Ground Clearance: 4.00"
Max Incline Rating: 12 °
Seat Depth: 18
Max Seat to Ground Height: 25"
Lowest Seat to Ground Height: 22"
Max Seat to Deck Height: 19"
Multiple Seating Options: No
High-Back Seat: Yes
Armrest Options: Flip-Back
Height Adjustable
Width Adjustable
Flip-Back Armrests: Yes
Wheel Type: Four Wheeled
Front Wheel Size: 10"
Rear Wheel Size: 10"
Overall Width: 23"
Overall Length: 45"
Axle-to-Axle Length: 33.00"
Battery Type: 12V / U1 x 2 pcs
Battery Charger Type: Off Board
Motor Size: DC 24V, 250W (Rating) / 915W (Max)
Braking System: Intelligent, regenerative, electromagnetic brakes
Basket Included: Yes
Headlight: Yes
Weight Without Batteries: 163.00 lbs.
Battery Pack Weight: 26.00 lbs.
Seat Section Weight: 40.00 lbs.
Base and Tiller Weight: 97.00 lbs.

Approximate Shipping Dimensions and Weights

Product Weight: 189 lbs.

More Information on the Pioneer 4

WARRANTY

Warranty Information

Scooter Warranty - Lifetime Limited

Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this scooter (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Plastic shrouds, tires, seating, upholstery/armpads, bulbs.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.

More Information on the Pioneer 4

RETURNS

Return Policy

  • The following conditions apply:
    • This item has a 20% Restocking Fee.
    • You are responsible for the cost of return shipping. The product must new and unused and in the original packaging.
    • All accessories and items that were included in the box must be returned.
    • Items canceled after the product has already shipped will be considered a return.
    • Delivery and service fees are not refundable.
    • Mattresses ordered with beds are non-returnable.
    • Custom-made by the manufacturer to suit your specific needs are non-returnable.
    • An RA (Return Authorization) from SpinLife must be requested within 30 days of delivery.
    • The item must be shipped back to the address noted on the RA within 15 days.
    • Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.

More Information on the Pioneer 4

Customize & Buy

Frame

400 lb weight capacity


Additional Color Options

Choose One

Blue

Red


In Home Service Contract

Help Me Choose

Delivery Options

Help Me Choose
