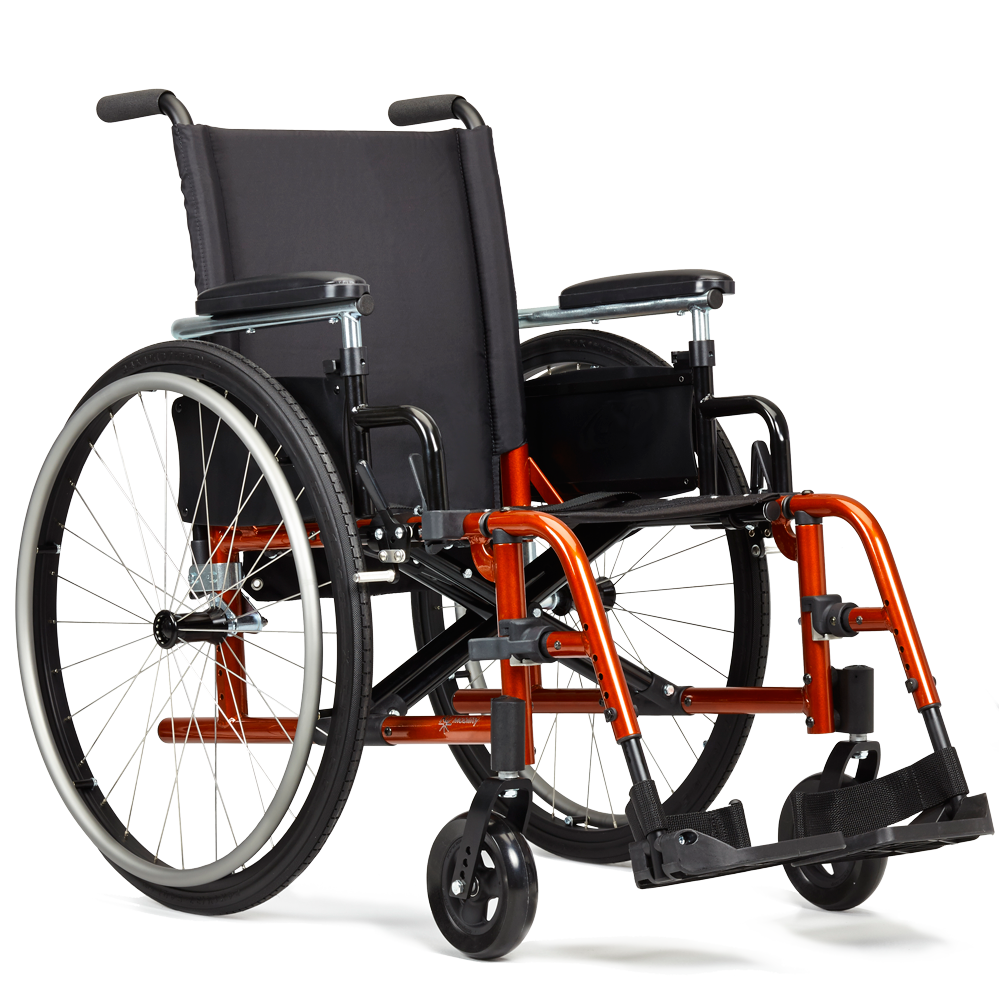

Catalyst 4C

A great lightweight option made to accommodate complex seating systems and a large range of positioning preferences.

Ki Mobility
(Model No. Catalyst 4C)
PRODUCT OVERVIEW
$1,067.00 List Price: $1,525.00
Customize
OUR LOW PRICE INCLUDES:
  • Easy-To-Fold Design
  • Made in the USA
SHIPPING INFORMATION: Details
Custom Built for You
  • Leaves Warehouse In:
  • 15 Business Days Details
  • Ground Shipping:
  • FREE for orders over $50!
  • Expedited Shipping:
  • GO
    2nd Day: $0.00
    Overnight: $0.00
    Unavailable
  • Overview
    +
    -

    Features

    • Full Range of Seat Widths from 14” to 22”
    • Seating System Cross Brace
    • Optional Removable Aluminum Seat Pan
    • Cross Brace Design Creates Better Rigidity and Durability
    •  “Between-The-Rails” Seat Design
    • Lifetime Warranty for Legrests

    Key Specs

    • Quick-Release Axles: Yes
    • Weight capacity: 250 lbs.
    • Starting Weight: 26 lbs.
    • View All Specs

    Manuals, Literature & Videos for the Catalyst 4C

    Overview of the Catalyst 4C

    Ki Mobility's whole Catalyst line offers a Dual Interlocking Cross Brace.This design creates a frame that locks together so that it minimizes unwanted movement and maximizes the energy transferred in each of your pushes making your push as efficient as possible. The “Between-The-Rails” Seat Design has the seat frame tubing setting side-by-side rather than stacking them atop one another. So instead of the weight of the user resting on the cross brace, the weight is transferred to the side frames. This prevents having to use heavy cross braces which add weight to the wheelchair.


    Even how the Catalyst 4C folds and unfolds is unique. A Power X-Hinge is an extending link from the frame to the cross brace that expands and contracts when the frame is opening or closing. Another benefit of the Power X-Hinge is how it improves the frame’s structural integrity. The extending link provides the frame’s strength and rigidity rather than the seat upholstery.


    Not to be forgotten are Ki Mobility’s one of a kind legrests. The legrests can be mounted or removed from any angle. No need to rotate all the way or all the way out like those found on other wheelchairs.


    What Makes This Different
    The Catalyst 4C has all the features that separate you get from the Catalyst 4 but offers a much wider range of seat widths and depths as well as a cross brace that easily accommodates seating systems and positioning aids. A removable solid seat pan can be added for those needing a more supportive base for their cushion. As with the Catalyst 4, the 4C features the offset axle. The axle plate is mounted 1-1/2” forward to the axle position of similar wheelchairs from other manufacturers. By positioning the axle plate in this fashion, the Catalyst 4C can greatly improve your push efficiency. The design of the simple axle plate allows for easy vertical adjustments in 5 different positions. For those wanting or needing greater rearward stability, the axle plate can be reversed. You also get the rear wheel options of Ki’s own Maxx Performance Spoke which gives you a highly rigid and responsive ride that gives you the most roll for every push you give it. If you prefer mag wheels to spoke wheels, the Catalyst 4C also offers X-Core’s lightweight and stylish mag wheels. The X-Core mag wheels provide greater stiffness and a more rigid ride than traditional mag wheels.

    Why We Like It
    The Catalyst 4C offers a great range of options for an affordably priced lightweight wheelchair. The 4C can accommodate seat widths from 14” to 22” and seat depths from 14” to 20”. Seat heights are available from 13.5” to 21”. This means the Catalyst 4C can be a great wheelchair for everyone from a shorter user who propels with their feet to the taller user who prefers to push with their hands. A special cross brace is available to easily adapt to specialty seating. The 4C also can be built with a removable aluminum solid seat so complex seating can be provided while still permitting the wheelchair to fold for easy transport.The Catalyst 4C is a great option whether you need a basic lightweight wheelchair or a lightweight wheelchair capable of meeting unique body types or special needs.

    Measuring Guide


    View Detailed Measurement Guide
    Seat Depth1
    Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
    Back Height2
    Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
    Rear Seat to Floor3
    Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
    Hanger Angle4
    Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
    Seat Width5
    Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
    Wheel Camber6
    Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
    Front Seat to Floor7
    Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
    Footrest Width8
    Measure from the inside of each legrest tubing the distance or desired distance between legrests.
    Center of Gravity9
    Measure from the front of the seat back post to the center of the rear axel.
    Seat to Footrest Length10
    Measure from the edge of the seat upholstery to the top rear of the footrest.
    Backrest Angle11
    Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.

    More Information on the Catalyst 4C

  • Specs
    +
    -

    Specifications for the Catalyst 4C

    Seat Widths: 14"
    15"
    16"
    17"
    18"
    19"
    20"
    21"
    22"
    Legrest Options: Swing Away
    Elevating
    Quick-Ship: No
    Seat to Floor Heights: 13.5" to 21"
    Frame Type: Folding
    Seat Depths: 14"
    15"
    16"
    17"
    18"
    19"
    20"
    Front Seat to Floor Height: 13.5" to 21"
    Rear Seat to Floor Height: 12.5" to 20"
    Angle-adjustable Back: Yes
    Reclining Back Option: Yes
    Rear Wheel Size: 20"
    22"
    24"
    25"
    26"
    Pneumatic (air-filled) tire option: Yes
    Quick-Release Axles: Yes
    One-Arm Drive Option: No
    Upholstery Options: Yes
    Armrest Options: Fixed Height
    Flip Back
    Height Adjustable
    Removable
    Swing Away

    Approximate Shipping Dimensions and Weights

    Product Weight: 26 lbs.

    Manuals & Literature

    More Information on the Catalyst 4C

  • Warranty
    +
    -

    Warranty Information for the Catalyst 4C

    Ki Mobility warrants the frame, cross braces, hangers and quick-release axles of your Catalyst wheelchair against defects in materials and workmanship for the life of the original purchaser. All other parts and components of this wheelchair are warranted against defects in materials and workmanship for one year from the date of first consumer purchase.



    Limitations to the Warranty

    1. We do not warrant:

    a. Wear items: Upholstery, tires, armrest pads, tubes, armrests and push-handle grips.

    b. Damage resulting from neglect, misuse or from improper installation or repair.

    c. Damage from exceeding weight limit.

    2. This warranty is VOID if the original chair serial number tag is removed or altered.

    3. This warranty is VOID if the original chair has been modified from its original condition and it is determined that the modification resulted in failure.

    4. This warranty applies in the USA and Canada only. Check with your supplier to find out if international warranties apply.



    Ki Mobility’s Responsibility

    Ki Mobility’s only liability is to replace or repair, at our discretion, the covered parts. There are no other remedies, expressed or implied.



    Your Responsibility

    a. Notify Ki Mobility, via an authorized supplier, prior to the end of the warranty period and get a return authorization (RA) for the return or repair of the covered parts.

    b. Have the supplier send the authorized return, freight pre-paid, to:



    Ki Mobility

    5201 Woodward Drive

    Stevens Point, WI 54481



    c. Pay any charges for labor to repair or install parts.

    More Information on the Catalyst 4C

  • Returns
    +
    -
    SpinLife Return Policy for the Catalyst 4C

    Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.

    Custom built wheelchairs are made by the manufacturer to fit your specific needs and body measurements and are therefore non-returnable.


    If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.

    More Information on the Catalyst 4C

Customize & Buy

Frame Type

Frame Finish
Help Me Choose

Gloss - Black Gloss - Black
Gloss - Black
Gloss - Black
Gloss - Blue Skies Gloss - Blue Skies
Gloss - Blue Skies
Gloss - Blue Skies
Gloss - Bubblegum Pink Gloss - Bubblegum Pink
Gloss - Bubblegum Pink
Gloss - Bubblegum Pink
Gloss - Candy Blue Gloss - Candy Blue
Gloss - Candy Blue
Gloss - Candy Blue
Gloss - Candy Purple Gloss - Candy Purple
Gloss - Candy Purple
Gloss - Candy Purple
Gloss - Candy Red Gloss - Candy Red
Gloss - Candy Red
Gloss - Candy Red
Gloss - Copper Gloss - Copper
Gloss - Copper
Gloss - Copper
Gloss - Granny Smith Gloss - Granny Smith
Gloss - Granny Smith
Gloss - Granny Smith
Gloss - Metallic Orange Gloss - Metallic Orange
Gloss - Metallic Orange
Gloss - Metallic Orange
Gloss - Yellow Gloss - Yellow
Gloss - Yellow
Gloss - Yellow
Mate - Iridescent Navy Mate - Iridescent Navy
Mate - Iridescent Navy
Mate - Iridescent Navy
Matte - Charcoal Gray Matte - Charcoal Gray
Matte - Charcoal Gray
Matte - Charcoal Gray
Matte - Emerald Green Matte - Emerald Green
Matte - Emerald Green
Matte - Emerald Green
Matte - Iridescent Burgundy Matte - Iridescent Burgundy
Matte - Iridescent Burgundy
Matte - Iridescent Burgundy
Matte - Military Green Matte - Military Green
Matte - Military Green
Matte - Military Green
Matte - Retro Red Matte - Retro Red
Matte - Retro Red
Matte - Retro Red
Matte - Royal Blue Matte - Royal Blue
Matte - Royal Blue
Matte - Royal Blue
Matte - Shadow Black Matte - Shadow Black
Matte - Shadow Black
Matte - Shadow Black
Matte - Smooth White Matte - Smooth White
Matte - Smooth White
Matte - Smooth White

Hydrographics
Help Me Choose

Hydrographic Base Color
Help Me Choose

Seat Width

Seat Depth

Seat Upholstery
Help Me Choose

Cross Brace
Help Me Choose

Back Type
Help Me Choose

Back Height Range

Back Height Setting

Backrest Upholstery
Help Me Choose

Back Post Option
Help Me Choose

Military Patches
Help Me Choose

Footrest Type
Help Me Choose

Footrest Hanger Type
Help Me Choose

Footrest Extension

Front Mount Hanger Extension

Seat to Footrest

Hanger Release
Help Me Choose

Residual Limb Support
Help Me Choose

Residual Limb Support Cover Type

Residual Limb Support Pad Size

Heel Loops
Help Me Choose

Calf Straps
Help Me Choose

Casters
Help Me Choose

Fork Stem

Caster Fork Options
Help Me Choose

Front Seat Height

Wheel Locks
Help Me Choose

Wheel Lock Options
Help Me Choose

Rear Seat Height

Rear Wheels
Help Me Choose

Spinergy Spoke Color
Help Me Choose

Spinergy Handrim Tab Option

Rear Wheel Tires
Help Me Choose

Handrims
Help Me Choose

Axles

Armrests
Help Me Choose

Armpads
Help Me Choose

Anti-Tips
Help Me Choose

Select optional accessories - up to 20% off!
