Tracer EX2
The Tracer EX2 is a high quality standard chair with options not available on other models.
Tracer EX2
The Tracer EX2 is a high quality standard chair with options not available on other models.
NEED HELP OR ADVICE?
Our Product Experts are here for you
1-800-850-0335The SpinLife Difference Includes:
Removable Arms
24" Urethane Rear Tires
5 Year Limited Warranty
FREE Shipping
Price Match Guarantee
Features
- Weight Capacity: 250 lbs
- Comes with dual axles plus removable armrests
- 16", 18" and 20" seat widths at no extra charge
- Full range of options including oxygen tank holders and multiple legrests
- Folds to 13" width for travel and storage
- Silver vein finish on carbon steel frame
- 14-gauge cross braces add durability and strength
- Dual-embossed upholstery
Key Specs
- Quick-Release Axles: No
- Weight capacity: 250 lbs.
- Weight: 36 lbs.
Manuals, Literature & Videos
Overview

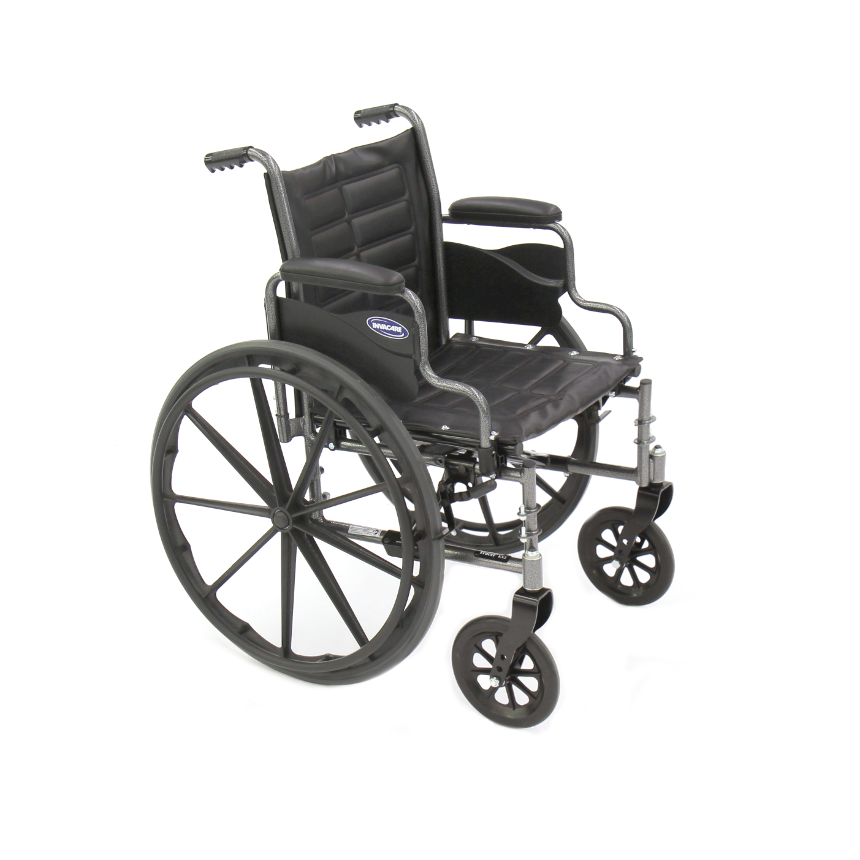

The Invacare Tracer EX2 Deluxe wheelchair is a high quality standard wheelchair that comes in multiple seats widths and arms lengths. Choose from desk length or full length arm rests and a full range of accessories. Standard features include 8" solid rubber casters, composite handrims, blue vinyl upholstery, and padded armpads. The frame is warranted for a lifetime.
Choose optional footrests for added support.
Measuring Guide
View Detailed Measurement Guide
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
- Back Height2
- Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
More Information on the Tracer EX2
See also:
Specs
| Overall Width: | 24.5" to 28.5" |
| Seat Widths: |
16" 18" 20" |
| Product Weight: | 36 lbs. |
| Legrest Options: |
Elevating Swing Away |
| Quick-Ship: | Yes |
| Seat to Floor Heights: | 17.5" to 19.5" |
| Frame Type: | Folding |
| Seat Depths: | 16" |
| Overall Width Open - Add to Seat Width: | 8.50" |
| Hemi Height Option: | Yes |
| Back Height: | 16" |
| Angle-adjustable Back: | No |
| Fold-down back for easy transport: | No |
| Reclining Back Option: | No |
| Rear Wheel Size: | 24" |
| Pneumatic (air-filled) tire option: | No |
| Quick-Release Axles: | No |
| One-Arm Drive Option: | No |
| Upholstery Options: | No |
| Armrest Options: |
Fixed Height Removable |
| Removable Legrests: | Yes |
| Expedited Shipping Available: | Yes |
| Product Weight Range: | 30 lbs or more |
Approximate Shipping Dimensions and Weights
| Product Weight: | 36 lbs. |
| Box 1 | |
| Shipping Weight: | 45.00 lbs. |
| Length: | 38.04" |
| Width: | 12.96" |
| Height: | 32.04" |
Tracer EX2 Reviews
97% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the Tracer EX2.
Customer Reviews
Showing:
More Information on the Tracer EX2
See also:
Warranty Information
Invacare 5-year Manual Wheelchair Warranty
If you have a problem with your manual wheelchair, simply call one of our expert customer service representatives, and they will arrange for a diagnosis of your wheelchair. SpinLife.com will have the parts shipped to you - free of charge. Every effort will be made to return your manul wheelchair to working condition in the shortest time possible.
The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.
5 years: Side frame and cross members
13 months (1 year, and 1 month): Upholstered materials and remaining components
All of the previous parts are covered for defect in material and/or workmanship. Any abuse or intentional misuse of the wheelchair will void the warranty.
More Information on the Tracer EX2
See also:
Return Policy
- The following conditions apply:
- This item has a 20% Restocking Fee.
- You are responsible for the cost of return shipping. The product must new and unused and in the original packaging.
- All accessories and items that were included in the box must be returned.
- Items canceled after the product has already shipped will be considered a return.
- Delivery and service fees are not refundable.
- Mattresses ordered with beds are non-returnable.
- Custom-made by the manufacturer to suit your specific needs are non-returnable.
- An RA (Return Authorization) from SpinLife must be requested within 30 days of delivery.
- The item must be shipped back to the address noted on the RA within 15 days.
- Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.
- If delivered by a technician and delivery slip is signed and accepted the item is unable to be returned.
