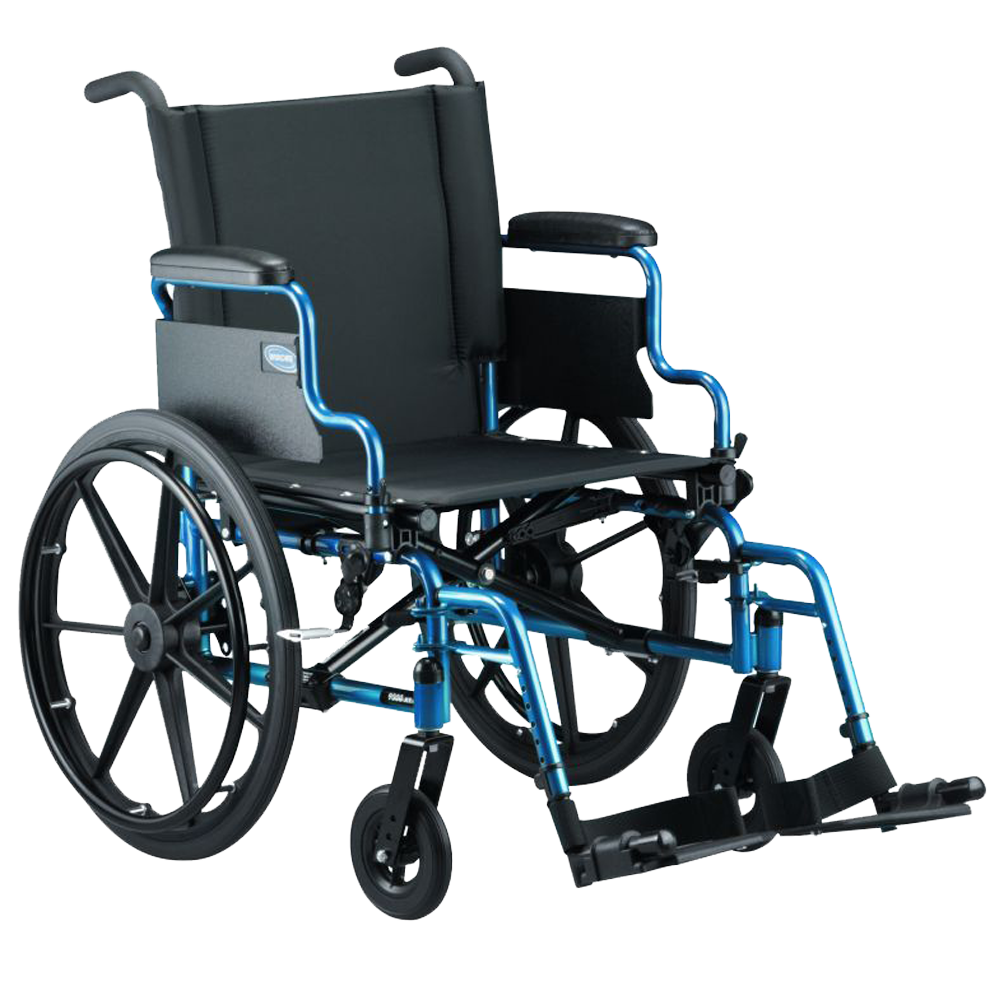

Invacare 9000 XT - Invacare Standard Lightweight

Overview
+
-
Features
- 250 lb. weight capacity
- Available in 14", 16", 18", 20", and 22" seat widths
- Seat height choices of 17.5" and 19.5"
Key Specs
- Weight capacity: 250 lbs.
- Weight: 31 lbs.
- View All Specs
Manuals, Literature & Videos for the 9000 XT
- Product Brochure
- Order Form
Overview of the 9000 XT

The Invacare 9000XT lightweight wheelchair is a highly versatile and cost-effective lightweight wheelchair. It offers a wide range of options including multiple frame styles, colors, options and accessories. Choose from 10 great frame colors and three upholstery choices. In addition, the 9000XT is our most affordable lightweight that offers a full range of seat widths, from 14" - 22", and adjustable caster journals.

Measuring Guide

View Detailed Measurement Guide

Seat Depth¹

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.

Back Height²

Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.

Rear Seat to Floor³

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.

Hanger Angle⁴

Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.

Seat Width⁵

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.

Wheel Camber⁶

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.

Front Seat to Floor⁷

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.

Footrest Width⁸

Measure from the inside of each legrest tubing the distance or desired distance between legrests.

Center of Gravity⁹

Measure from the front of the seat back post to the center of the rear axel.

Seat to Footrest Length¹⁰

Measure from the edge of the seat upholstery to the top rear of the footrest.

Backrest Angle¹¹

Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.

More Information on the 9000 XT
- See also:
- Details & Specs
- Reviews
- Warranty
- Returns

Specifications for the 9000 XT

Overall Width:	21" to 29"
Seat Widths:	14" 15" 16" 17" 18" 20" 22"
Product Weight:	31 lbs.
Legrest Options:	Elevating Fixed Swing Away
Seat to Floor Heights:	14.5" to 19.5"
Frame Type:	Folding
Seat Depths:	16" 17" 18"
Hemi Height Option:	Yes
Back Height:	15" 16" 17" 18" 19"
Angle-adjustable Back:	Yes
Armrest Options:	Fixed Height Height Adjustable
Product Weight Range:	30 lbs or more

Approximate Shipping Dimensions and Weights

Product Weight:	31 lbs.
Box 1
Shipping Weight:	45.00 lbs.
Length:	32.16"
Width:	12.96"
Height:	38.04"

Manuals & Literature

More Information on the 9000 XT

Reviews
+
-
9000 XT Reviews

4.5
Rating Breakdown

Rating Breakdown

5 star

61%

(144)

4 star

32%

(76)

3 star

5%

(14)

2 star

0%

(1)

1 star

0%

(0)

95% of reviewers recommend this!

Features

(4.5)

Quality

(4.5)

Ease of Use

(4.5)

Meets Expectations

(4.5)

These reviews are from SpinLife customers who have purchased and used the 9000 XT.

Customer Reviews

Showing:

View All Reviews
More Information on the 9000 XT
- See also:
- Overview
- Details & Specs
- Warranty
- Returns
Warranty
+
-
Warranty Information for the 9000 XT

Invacare 5-year Manual Wheelchair Warranty

If you have a problem with your manual wheelchair, simply call one of our expert customer service representatives, and they will arrange for a diagnosis of your wheelchair. SpinLife.com will have the parts shipped to you - free of charge. Every effort will be made to return your manul wheelchair to working condition in the shortest time possible.

The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.

5 years: Side frame and cross members

13 months (1 year, and 1 month): Upholstered materials and remaining components

All of the previous parts are covered for defect in material and/or workmanship. Any abuse or intentional misuse of the wheelchair will void the warranty.

More Information on the 9000 XT
- See also:
- Overview
- Details & Specs
- Reviews
- Returns
Returns
+
-
SpinLife Return Policy for the 9000 XT
This item is non-returnable for one of the following reasons:
- This item is custom-made by the manufacturer to suit your specific needs . Please review all specifications carefully before placing your order. Once production of your item has begun – the order is unable to be cancelled.
- For hygienic safety and per FDA regulations this item is non-returnable, even if unused.
- Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.
If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
