Features
- Narrowest stair lift at only 10.5”
- 350 and 600 pound capacity options
- Up to 40 cycles per charge
- Can be installed on either side of the staircase
- Patented worm gear drive system
- No grease or lubrication needed – low maintenance
Manuals, Literature & Videos for the Pinnacle Premium Stair Lift

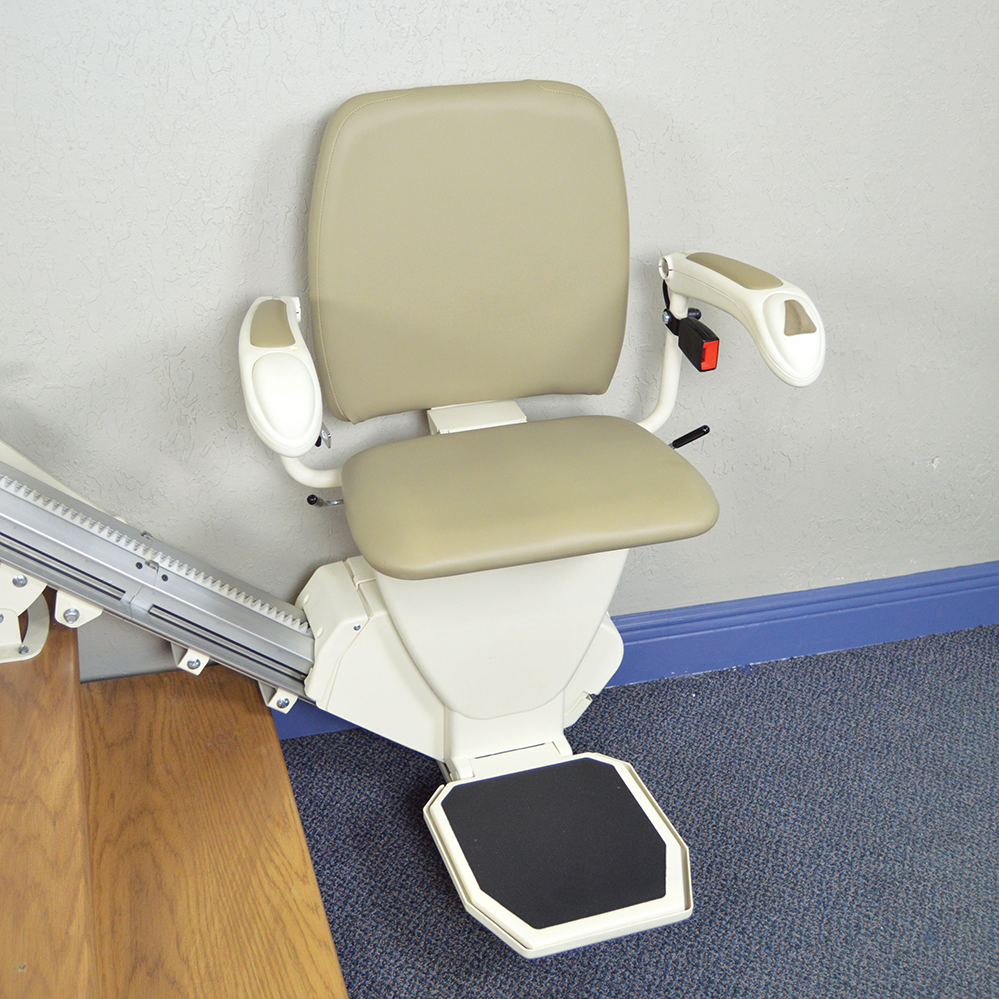

Overview of the Pinnacle Premium Stair Lift
The Pinnacle is a great stairlift that only takes up 10.5" of stairwell space. A swivel seat at the upper landing makes for easy and safe entries and exits. The seat itself is upholstered with padding and a full-sized backrest with a retractable seat belt for security. The Pinnacle uses a helical worm gear drive system for a smooth and quiet ride. A nylon polymer gear rack means there is no need for grease or lubrication, so the lift is low maintenance and easy to clean.
What Makes It Different:
The Pinnacle has a long list of other differentiating features. Safety is a big feature for the Pinnacle. There are safety sensors in the footrest so that the chassis will stop the lift if it detects an obstruction. The controls are easy to operate and come with condition indicator lights.
Why We Like It
At a width of 10.5” with the seat folded up, the Pinnacle is the narrowest stairlift in the industry. You can have a stairlift and not lose over half your stairway to the lift. Despite this compact size the Pinnacle can accommodate a wide variety of body types. The weight capacity is 350 lbs. and the seat width is 19”. The Helical Worm Gear and reinforced Nylon Polymer Gear Rack drive system eliminates maintenance, uses less electricity than other lifts and therefore saves on your energy bills.
What You Need To Know When Ordering
Please see the attached Pre-Install Survey and be ready to discuss your options with one of our Product Experts. The Pinnacle Stair Lift must be professionally installed. The installation takes 90 minutes or less. Please keep in mind that some states* require permits for the installation of the Pinnacle Stair Lift. Please be aware that installation of the Pinnacle Stair Lift may not be available in some regions. Contact a SpinLife Product Expert to confirm that service is provided in your area.
*States that we know require additional permitting: AL, CA, CT, FL, GA, MA, MI, NJ, NY, OR, WA.
* Custom configuration and installation charges will apply. Call a SpinLIfe Product Expert to discuss your needs.
Measuring Guide
Measuring your stairway correctly is essential to ensuring that your new stair lift will install easily and function safely and properly. Please follow the instructions below carefully.
Step 1: Determine Mount Side
Mount Side: From the bottom of your staircase looking up, determine on which side you want the lift installed. Because the lift mounts to the stairs and not the wall, you may choose either side.
Step 2: Measure for Length of Track
Measurement A - Top to Bottom: Stand at the top of your stairs and extend your tape measure down the staircase. The tape measure should lightly touch each stair tread and the tip should touch the landing at the bottom of the steps. The measurement should be from the front edge (nose) of the top landing to the floor at the bottom landing.
Measurement B - Top to First Step: Measure from the front edge (nose) at the top of the landing to the front edge (nose) of the first step.
Step 3: Measure the Stair Tread & Rise
Measurement C - Stair Tread Length: Measure the tread of a stair from front edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a stair by measuring the length from the front edge (nose) of one step straight down to the next tread.
Number of Risers: Count the number of stair risers on your staircase.
Step 4: Measure Top & Bottom Obstruction Distances
Measurement E - Top Obstruction Distance: Measure the distance from the front edge of the top step to any obstruction on the top landing. Common obstructions include doors, walls or railings.
Measurement F - Bottom Obstructon Distance: Measure the distance from the front edge of the bottom stair to any obstruction on the bottom landing.
Step 5: Measure Width of Stairs
Measurement G - Stair Width: Measure the width of the stairs from side to side.
Need help? Please call a SpinLife Expert at 1-800-850-0335.
