AL500 Platform Power Wheelchair

28 reviews  89% of reviewers recommend this!

Easy to use with secure self-tensioning retractors and a simple one-switch operation.

(Model No. AL500)
$2,245.00 List Price: $3,030.00
  • Free Shipping for Orders over $50
  • License Plate Mount
  • Manual Crank Back-Up
  • Hardwire Kit
  • 4 Self-Tensioning Retractors
  • 1 year Warranty
  • Made in the USA
  • Leaves Warehouse In:
  • 2-3 Business Days Details
  • Ground Shipping:
  • FREE for orders over $50!
  • Expedited Shipping:
  • GO
    2nd Day: $0.00
    Overnight: $0.00
  • Overview


    • FREE Heavy Duty Mobility Cover!
    • Get a free hitch adapter with your lift! Limited time only!
    • No power chair modifications required
    • Can be upgraded to use with a Class II hitch
    • Class III hitch use is standard
    • Self-tensioning quick-release hooks secure the wheelchair onto the lift

    Key Specs

    • Lift Operation: Power
    • Works With Hitch Size:
      • Class II Hitch
      • Class III Hitch
    • Weight capacity: 350 lbs.
    • Weight: 75 lbs.
    • View All Specs

    Manuals, Literature & Videos for the AL500 Platform Power Wheelchair

    Overview of the AL500 Platform Power Wheelchair

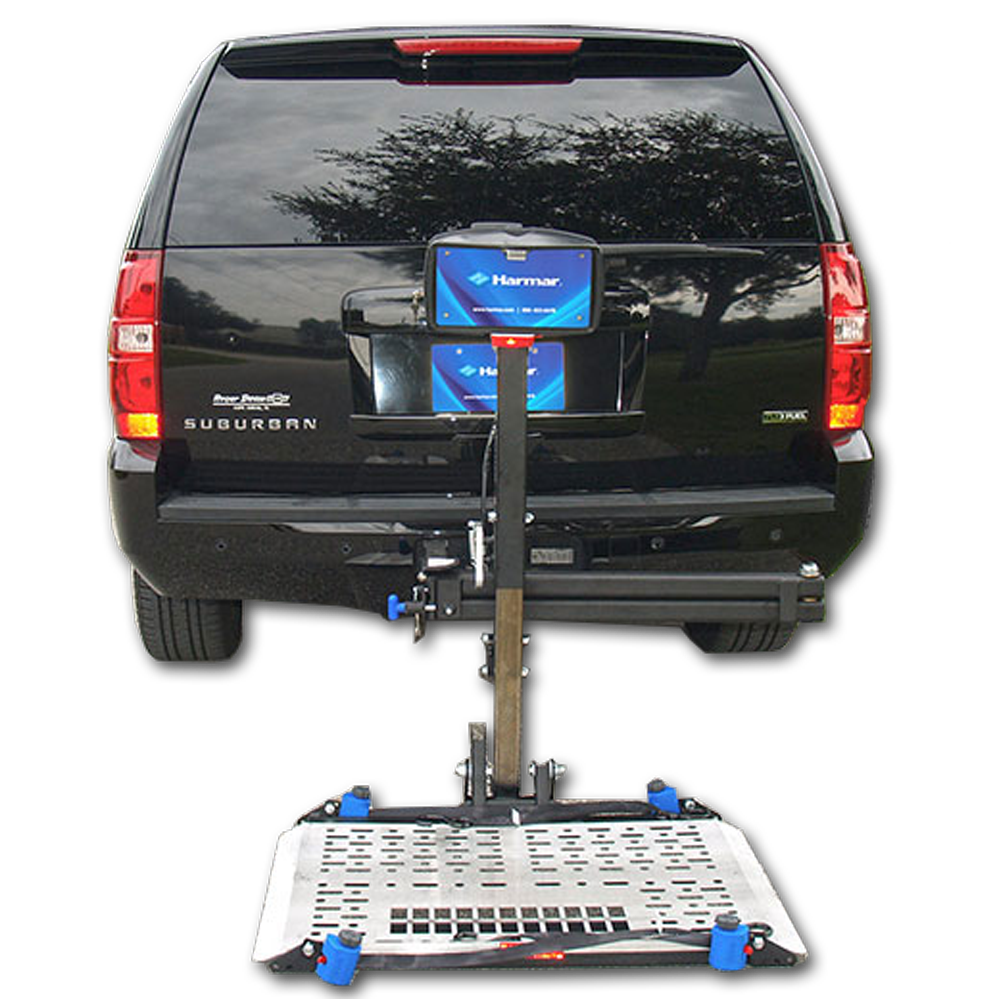

    The Harmar AL500 is a power wheelchair specific vehicle lift.  The AL500 has been one of our most popular power wheelchair lifts due to its functionality, quality features, and durability.  The AL500 is also popular due its ability to be compatible with a very wide range of vehicles as well as styles and sizes of power wheelchairs.  No modifications need to be made to your power wheelchair to use on the AL500.  The AL500 will work with both Class II and Class III hitches.  Four self-tensioning, quick release retracting straps with hooks securely hold your power wheelchair to this lift.

    What Makes This Different:

    The wide range of adaptability to many sizes and styles of power wheelchairs is what sets the AL500 apart.  The AL500 can accommodate wheelchairs from the size of a travel power wheelchair, to full size power wheelchairs, and all the way up to smaller heavy-duty models.  The flat, full size deck allows the AL500 to work with mid-wheel, front wheel, and rear wheel drive power wheelchairs.  Operation is very easy with a one-switch operation.  A manual crank provides backup in case the power source fails.

    Why We Like It:

    The AL500 is highly adaptable and firmly secures your power wheelchair for easy transport.  The large aluminum deck folds up against the back of your vehicle when not in use making it easy to get your vehicle in your garage.   When the deck is unloaded and in the folded position, the lift extends just 12" behind the bumper.  The Swing-Away option provides easy access to the trunk or lift gate of any vehicle that can support a Class III hitch.  The swing away option will add just 2” of length behind the lift is folded up.

    Securement Device
    Using automatic retractors the AL500 can secure virtually any power chair. The retractors can be attached to your chair by two methods. One method uses a spreader bar that slides between the seat and seat post, which has provisions for the retractors. If there is no seat post, the other method uses metal loops that attach to the frame of the chair. Both methods add only a few ounces of weight to the chair and have been extensively tested to ensure complete security. They can be removed without damaging a chair.

    Please be aware many states require you to display your license plate on the outside of your lift. It may be required in the following states: CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, & AL. It might be required in other states as well and it’s your responsibility to understand your state’s regulations. If you are required to display your license plate then we recommend adding the AL 901 to your order; available to the right.
    Looking for the AL500HD Heavy Duty Version?  Click HERE


    More Information on the AL500 Platform Power Wheelchair

  • Specs

    Specifications for the AL500 Platform Power Wheelchair

    AL500 AL500HD
    Hitch Height: 5" to 18" 5" to 18"
    Lift Operation: Power --
    Power Source: Battery
    Works With Hitch Size: Class II Hitch
    Class III Hitch
    Class II Hitch
    Class III Hitch
    Professional Install Available: Yes Yes
    Service Contract Available: No No
    Operation: Power Power
    Lifting Capacity: 350 lbs. 400 lbs.
    Recommended For: Full-Size Power Wheelchairs Full-Size Power Wheelchairs
    Platform Size - Length: 39 in. 39 in.
    Platform Size - Width: 27.5 in. 27.5 in.
    Installed Product Weight: 75 lbs. 77 lbs.
    Type of Lift: Outside Lift Outside Lift
    Warranty: 3 Year Limited Warranty 3 Year Limited Warranty
    Warranty - Transferable Warranty: Yes Yes

    Approximate Shipping Dimensions and Weights

    Product Weight: 75 lbs.
    Box 1
    Shipping Weight: 150.00 lbs.
    Length: 42.00"
    Width: 41.00"
    Height: 13.00"

    Manuals & Literature

    More Information on the AL500 Platform Power Wheelchair

  • Reviews

    AL500 Platform Power Wheelchair Reviews

    89% of reviewers recommend this!

    Ease of Use
    Meets Expectations
    These reviews are from SpinLife customers who have purchased and used the AL500 Platform Power Wheelchair.

    Customer Reviews

    View All Reviews

    More Information on the AL500 Platform Power Wheelchair

  • Warranty

    Warranty Information for the AL500 Platform Power Wheelchair


    Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.

    This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

    More Information on the AL500 Platform Power Wheelchair

  • Returns
    SpinLife Return Policy for the AL500 Platform Power Wheelchair

    This item is non-returnable for one of the following reasons:

    • This item is custom-made by the manufacturer to suit your specific needs . Please review all specifications carefully before placing your order. Once production of your item has begun – the order is unable to be cancelled.
    • For hygienic safety and per FDA regulations this item is non-returnable, even if unused.
    • Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.

    If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
