AL500HD Platform Power Wheelchair

Safely transports heavy duty power chair without making chair modifications.

(Model No. AL500HD)
$2,360.00 List Price: $3,145.00
  • Free Shipping for Orders over $50
  • Manual Crank Back-Up
  • License Plate Mount
  • Hardwire Kit
  • 4 Self-Tensioning Retractors
  • Made in the USA
  • 1 year Warranty
  • Leaves Warehouse In:
  • 15-20 Business Days Details
  • Ground Shipping:
  • FREE for orders over $50!
  • Expedited Shipping:
  • GO
    2nd Day: $0.00
    Overnight: $0.00
  • Overview


    • FREE Heavy Duty Mobility Cover!
    • Get a free hitch adapter with your lift! Limited time only!
    • No power chair modifications required
    • Can be upgraded to use with a Class II hitch
    • Class III hitch use is standard
    • Self-tensioning quick-release hooks secure the wheelchair onto the lift

    Key Specs

    • Lift Operation: Power
    • Works With Hitch Size:
      • Class II Hitch
      • Class III Hitch
      • Class V Hitch
    • Weight capacity: 400 lbs.
    • Weight: 75 lbs.
    • View All Specs

    Manuals, Literature & Videos for the AL500HD Platform Power Wheelchair

    Overview of the AL500HD Platform Power Wheelchair

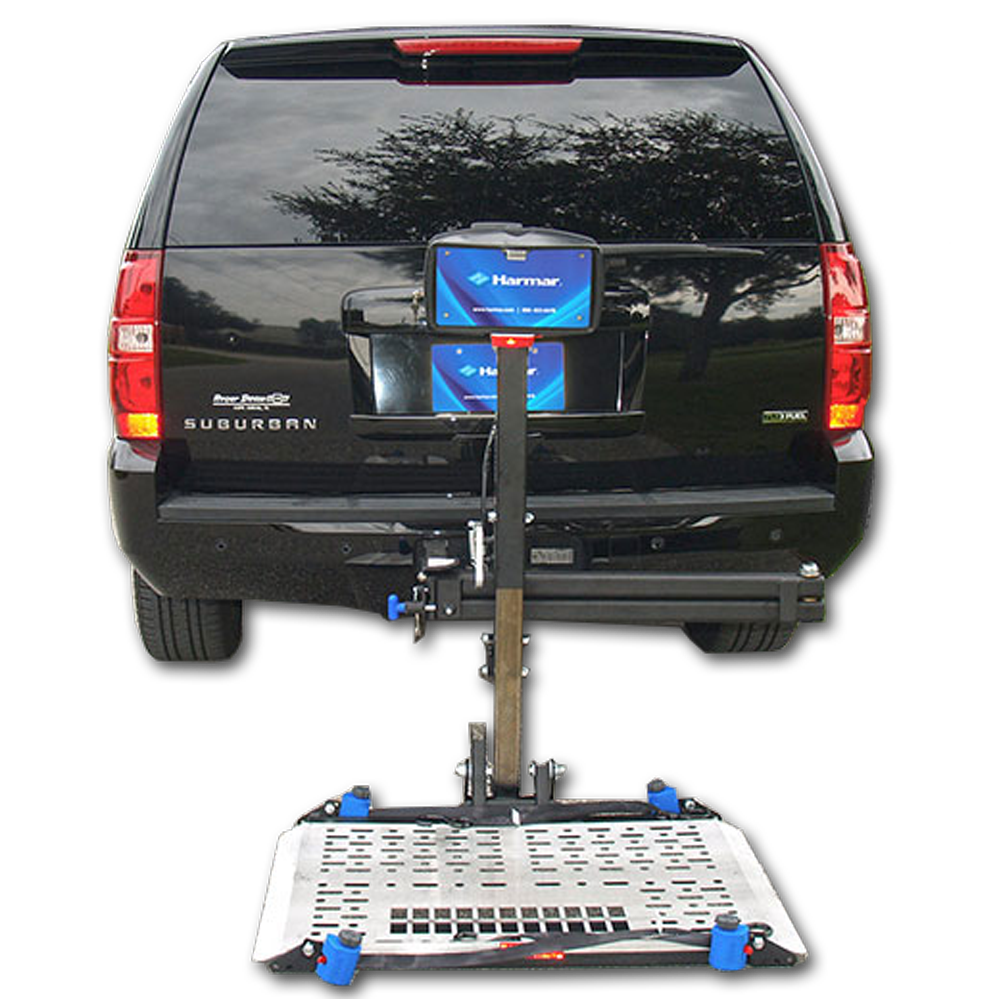

    The Harmar AL500HD is a power wheelchair specific vehicle lift.  The AL500 has been one of our most popular power wheelchair lifts due to its functionality, quality features, and durability for larger power wheelchairs including some complex rehab chairs.  The AL500HD is also popular due its ability to be compatible with a very wide range of vehicles as well as styles and sizes of power wheelchairs.  No modifications need to be made to your power wheelchair to use on the AL500HD.  The AL500HD will work with both Class II and Class III hitches.  Four self-tensioning, quick release retracting straps with hooks securely hold your power wheelchair to this lift.

    What Makes This Different:

    The wide range of adaptability to many sizes and styles of power wheelchairs is what sets the AL50HD0 apart.  The AL500HD can accommodate wheelchairs from the size of a travel power wheelchair, to full size power wheelchairs, and all the way up to smaller heavy-duty models.  The flat, full size deck allows the AL500 to work with mid-wheel, front wheel, and rear wheel drive power wheelchairs.  Operation is very easy with a one-switch operation.  A manual crank provides backup in case the power source fails.

    Why We Like It:

    The AL500HD is highly adaptable and firmly secures your power wheelchair for easy transport.  The large aluminum deck folds up against the back of your vehicle when not in use making it easy to get your vehicle in your garage.   When the deck is unloaded and in the folded position, the lift extends just 12" behind the bumper.  The Swing-Away option provides easy access to the trunk or lift gate of any vehicle that can support a Class III hitch.  The swing away option will add just 2” of length behind the lift is folded up.

    Securement Device
    Using automatic retractors the AL500HD can secure virtually any power chair. The retractors can be attached to your chair by two methods. One method uses a spreader bar that slides between the seat and seat post, which has provisions for the retractors. If there is no seat post, the other method uses metal loops that attach to the frame of the chair. Both methods add only a few ounces of weight to the chair and have been extensively tested to ensure complete security. They can be removed without damaging a chair.

    Please be aware many states require you to display your license plate on the outside of your lift. It may be required in the following states: CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, & AL. It might be required in other states as well and it’s your responsibility to understand your state’s regulations. If you are required to display your license plate then we recommend adding the AL 901 to your order; available to the right.


    More Information on the AL500HD Platform Power Wheelchair

  • Specs

    Specifications for the AL500HD Platform Power Wheelchair

    Hitch Height: 5" to 18"
    Lift Operation: Power
    Power Source: Battery
    Works With Hitch Size: Class II Hitch
    Class III Hitch
    Class V Hitch
    Professional Install Available: Yes
    Service Contract Available: No
    Operation: Power
    Lifting Capacity: 400 lbs.
    Recommended For: Full-Size Power Wheelchairs
    Platform Size - Length: 39 in.
    Platform Size - Width: 27.5 in.
    Installed Product Weight: 75 lbs.
    Type of Lift: Outside Lift
    Warranty: 3 Year Limited Warranty
    Warranty - Transferable Warranty: Yes

    Approximate Shipping Dimensions and Weights

    Product Weight: 75 lbs.

    Manuals & Literature

    More Information on the AL500HD Platform Power Wheelchair

  • Returns
    SpinLife Return Policy for the AL500HD Platform Power Wheelchair

    Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.

    • After 30 business days vehicle lifts are no longer returnable
    • If your lift is being installed by a Technician please inspect the unit BEFORE installation and AFTER installation completion. Once installation is complete and the service order is signed the unit cannot be returned.

    Once accepted, the following conditions apply:

    • This item has a 15% Restocking Fee.
    • You are responsible for the cost of return shipping and the product must be in the original packaging.
    • The item must be in new condition; unused. Indications of use include, but are not limited to: Damage and scrapes to the frame and loading surfaces.
    • All accessories and chargers include in the bed’s box must be returned. EX. Remotes, and cords.
    • Items canceled after the product has already shipped will be considered a return.
    • Unfortunately, delivery service fees, including Next-Day and Overnight shipping fees, Inside Delivery, White Glove Delivery, Tech Set-Up and Installation are not refundable.

    Return Process:

    • Request an RA (Return Authorization) from SpinLife within 7 days of delivery acceptance.
    • Once the RA has been issued from SpinLife, ship the item back to the address noted on the RA within 14 days.
    • Once the product is received it will be inspected for damage and signs of use. If item shows any signs of use, SpinLife is unfortunately not able to issue a refund. In the event your item is not returnable we will contact you and you can decide if you’d like it shipped back.  You will be responsible for shipping fees to get the item back to you.
    • Once approved, your refund, minus any restocking fees, will be refunded to your original form of payment.

    If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
