With front and rear adjustable wheel cradles this platform can accommodate mobility products with up to a 48" wheelbase.

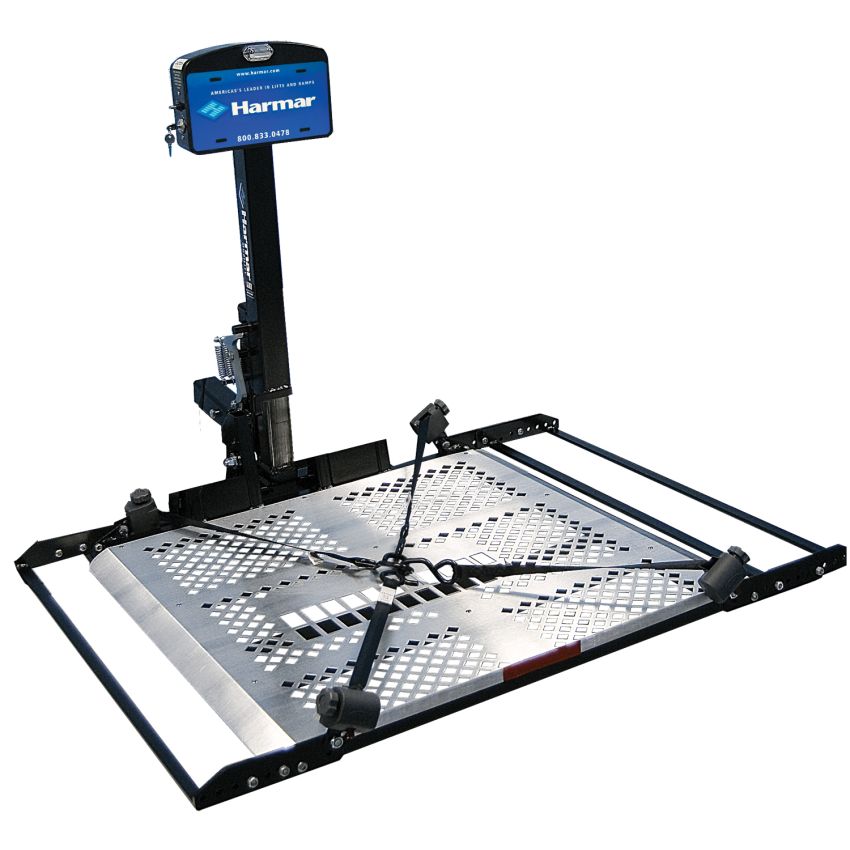

The AL301XL is a fully powered lift that rises and lowers with the flip of a switch. This lift will work with large powerchairs and scooters, due to its oversized aluminum deck. The self-tensioning retractors attach to your powerchair or scooter with no need for modifications or drilling, this makes it easy to secure your mobility device to the lift. The AL301XL is a great choice for larger power wheelchairs and scooters with a wheelbase up to 48”.
Please be aware many states require you to display your license plate on the outside of your lift. It may be required in the following states: CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, & AL. It might be required in other states as well and it’s your responsibility to understand your state’s regulations. If you are required to display your license plate then we recommend adding the AL 901 XL to your order.
|Hitch Height:||5" to 19"|
|Works With Hitch Size:||Class III Hitch|
|Professional Install Available:||No|
|Service Contract Available:||No|
|Lifting Capacity:||350 lbs.|
Full Sized Scooters
Full-Size Power Wheelchairs
|Platform Size - Length:||39-53 in.|
|Platform Size - Width:||36 in.|
|Installed Product Weight:||100 lbs.|
|Type of Lift:||Outside Lift|
|Warranty:||3 Year Limited Warranty|
|Warranty - Transferable Warranty:||Yes|
|Product Weight:||124 lbs.|
|Shipping Weight:||180.00 lbs.|
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.
Once accepted, the following conditions apply:
