AL100HD Heavy Duty Platform Scooter Lift
The big brother of the AL100 - able to carry up to 400lbs
The SpinLife Difference Includes:
Free Shipping for Orders over $50
License Plate Mount
Hold-Down Arm
Hardwire Kit
Adjustable Rear Wheel Cradle
3 Year Limited Warranty
Made in the USA
FREE Shipping
Price Match Guarantee
Features

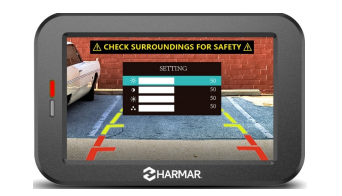

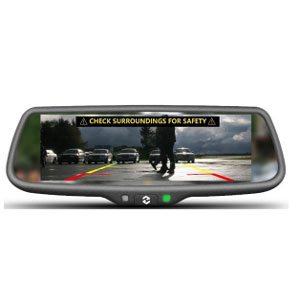

- Back-Up Camera Accessory Now Available
- FREE Heavy Duty Mobility Cover!
- Automatically lowers, lifts, and folds away with no effort!
- Standard with a Class III hitch, or can be upgraded to work with a Class V hitch
- 400 lbs Weight Capacity
Key Specs
- Lift Operation: Power
-
Works With Hitch Size:
- Class III Hitch
- Class V Hitch
- Weight capacity: 400 lbs.
- Weight: 84 lbs.
Manuals, Literature & Videos
Overview
The Harmar AL100HD scooter lift is one of the few scooter lifts available for a Class II hitch-equipped vehicle (Class III hitch type is standard). Its quality features, 400 lbs weight capacity construction and durability make it one of the most popular outside lifts on the market. The Swing-Away option provides easy access to the trunk or lift gate of any vehicle. Deck automatically folds up and out of the way when empty. Unloaded and in the folded position, Harmar's outside lifts only extend 12" behind the bumper. Add just 2" more for the Swing-Away Option.
Please be aware many states require you to display your license plate on the outside of your lift. It may be required in the following states: NE, KS, PA, VA, CA, AZ, NV, CO, UT, ND, SD, OR, WA, ID, MT, WY, HI, AK, FL, TX, & AL. It might be required in other states as well and it’s your responsibility to understand your state’s regulations. If you are required to display your license plate then we recommend adding the AL 901 XL to your order.
Will This Lift Work With My Vehicle? Try Our Compatibility Calculator!
More Information on the AL100HD Heavy Duty Platform Scooter Lift
See also:
Specs
| Hitch Height: | 5" to 18" |
| Lift Operation: | Power |
| Power Source: | Hardwired |
| Works With Hitch Size: |
Class III Hitch Class V Hitch |
| Professional Install Available: | Yes |
| Service Contract Available: | No |
| Operation: | Power |
| Lifting Capacity: | 400 lbs. |
| Recommended For: |
Travel Scooters Full Sized Scooters |
| Platform Size - Width: | 27.5 in. |
| Installed Product Weight: | 84 lbs. |
| Type of Lift: | Outside Lift |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
Approximate Shipping Dimensions and Weights
| Product Weight: | 84 lbs. |
| Box 1 | |
| Shipping Weight: | 103.00 lbs. |
| Length: | 42.00" |
| Width: | 42.00" |
| Height: | 12.00" |
AL100HD Heavy Duty Platform Scooter Lift Reviews
100% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the AL100HD Heavy Duty Platform Scooter Lift.
Customer Reviews
Showing:
More Information on the AL100HD Heavy Duty Platform Scooter Lift
See also:
Warranty Information
HARMAR VEHICLE LIFT WARRANTY
Harmar Mobility warrants its lift products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries, paint and covers, for a period of three (3) years from date of retail purchase, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar products are installed or defects in Harmar products caused by defects in any part of the vehicle upon which the product is installed. This warranty does not cover maintenance or adjustments. Harmar will not be charged for labor, consequential damage or repair expenses. Harmar will not, under any circumstances, be liable for the loss of the use of its products or loss of time. This warranty becomes null and void if the product has been lost, damaged by accident, over-stressed, misused and/ or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar at the address listed above, for inspection prior to credit, repair or replacement, at Harmar’s option. Harmar’s sole obligation and the exclusive remedy under this warranty is limited to such credit, repair or replacement.
This Express Warranty is in lieu of all other warranties or conditions, including all implied warranties or merchantability or fitness for a particular purpose, and there are no warranties that extend beyond the description of the limited warranty described herein. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
More Information on the AL100HD Heavy Duty Platform Scooter Lift
See also:
Return Policy
This item is non-returnable for one of the following reasons:
- This item is custom-made by the manufacturer to suit your specific needs . Please review all specifications carefully before placing your order.
- Once production of your custom item has begun – the order is unable to be cancelled.
- For hygienic safety and per FDA regulations this item is non-returnable, even if unused.
- Once products are installed, the product is no longer returnable.
- Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.
If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
