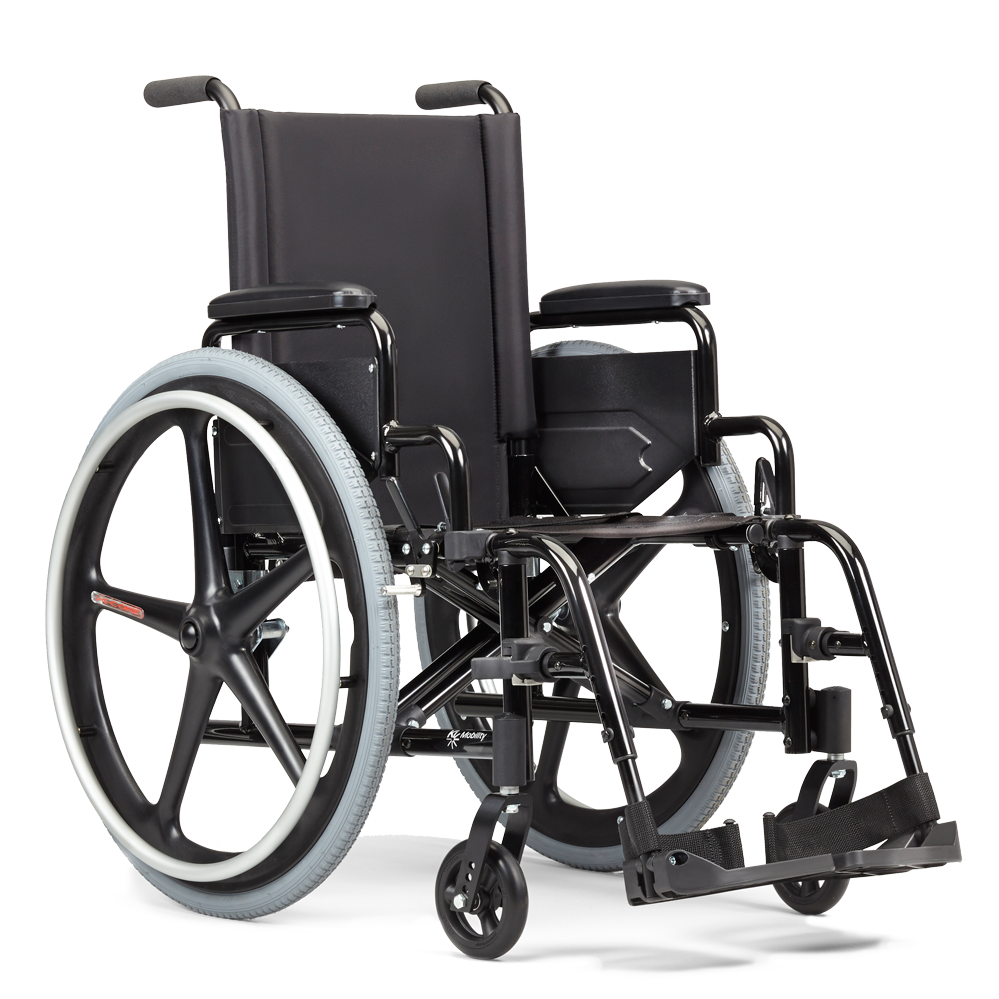

Catalyst 4
A variety of axle positions to provide proper stability and maximize push efficiency.
The SpinLife Difference Includes:
Easy-To-Fold Design
Lifetime Limited Warranty
Made in the USA
Features
- Seat to Floor Height Options of 13.5” to 21"
- Offset Axle Plate
- Cross Brace Design Creates Better Rigidity and Durability
- “Between-The-Rails” Seat Design
- Lifetime Warranty for Legrests
Key Specs
- Quick-Release Axles: Yes
- Weight capacity: 250 lbs.
- Starting Weight: 26 lbs.
Manuals, Literature & Videos
Overview
The Catalyst line offers a Dual Interlocking Cross Brace. This design creates a frame that locks together so that it minimizes unwanted movement and maximizes the energy transferred in each of your pushes making your push as efficient as possible. The “Between-The-Rails” Seat Design has the seat frame tubing setting side-by-side rather than stacking them atop one another. Instead of the weight of the user resting on the cross brace, the weight is transferred to the side frames. This prevents having to use heavy cross braces which add weight to other manufacturer’s wheelchairs.
Even how the Catalyst 4 folds and unfolds is unique. A Power X-Hinge is an extending link from the frame to the cross brace that expands and contracts when the frame is opening or closing. Another benefit of the Power X-Hinge is how it improves the frame’s structural integrity. The extending link provides the frame’s strength and rigidity rather than the seat upholstery. Not to be forgotten are Ki Mobility’s one of a kind legrests. The legrests can be mounted or removed from any angle. No need to rotate all the way or all the way out like those from other manufacturers.
What Makes This Different
The Catalyst 4 features an offset axle plate. The axle plate is mounted 1-1/2” forward to the axle position of similar wheelchairs from other manufacturers. By positioning the axle plate in this fashion, the Catalyst 4 can greatly improve your push efficiency. The design of the simple axle plate allows for easy vertical adjustments in 5 different positions. For those wanting or needing greater rearward stability, the axle plate can be reversed. The Catalyst 4 offers Ki’s brand-new wheel, the Maxx Performance Spoke. The rim is made of a 6061 aluminum with straight steel spokes in a black satin finish. The 18 steel spokes connect the high flange hub to the rim giving the Maxx Performance a highly rigid and responsive ride that gives you the most roll for every push you give it. If you prefer mag wheels to spoke wheels, the Catalyst 4 also offers X-Core’s lightweight and stylish mag wheels. The X-Core mag wheels provide greater stiffness and a more rigid ride than traditional mag wheels.
Why We Like It
The Catalyst 4 is the base model for the Catalyst line. Seat-to-floor height begins at 13.5” and can go all the way up to 21”. The Catalyst 4 comes standard with a 250 lbs. weight capacity, but can be increased all the way up to 350 lbs. For a very affordable price, the Catalyst 4 offers a wheelchair weight on par with ultra-lightweight wheelchairs costing considerably more.
Measuring Guide
View Detailed Measurement Guide
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
- Back Height2
- Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
More Information on the Catalyst 4
See also:
Specs
Seat Widths: |
14" 15" 16" 16.5" 17" 18" 18.5" 19" 20" 20.5" 21" 21.5" 22" |
Product Weight: | 26 lbs. |
Legrest Options: |
Elevating Swing Away |
Quick-Ship: | No |
Seat to Floor Heights: | 13.5" to 21" |
Seat Depths: |
16" 16.5" 17" 17.5" 18" 19" 20" 21" 22" |
Front Seat to Floor Height: | 13.5" to 21" |
Rear Seat to Floor Height: | 12.5" to 19" |
Back Height: |
13" 14" 15" 16" 17" 18" 18.5" 19" |
Angle-adjustable Back: | Yes |
Reclining Back Option: | Yes |
Rear Wheel Size: |
20" 22" 24" |
Pneumatic (air-filled) tire option: | Yes |
Quick-Release Axles: | Yes |
One-Arm Drive Option: | No |
Upholstery Options: | Yes |
Armrest Options: |
Fixed Height Flip Back Height Adjustable Removable Swing Away |
Product Weight Range: | 20 lbs to 30 lbs |
Approximate Shipping Dimensions and Weights
Product Weight: | 26 lbs. |
Catalyst 4 Reviews
88% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the Catalyst 4.
Customer Reviews
Showing:
More Information on the Catalyst 4
See also:
Warranty Information
Limitations to the Warranty
1. We do not warrant:
a. Wear items: Upholstery, tires, armrest pads, tubes, armrests and push-handle grips.
b. Damage resulting from neglect, misuse or from improper installation or repair.
c. Damage from exceeding weight limit.
2. This warranty is VOID if the original chair serial number tag is removed or altered.
3. This warranty is VOID if the original chair has been modified from its original condition and it is determined that the modification resulted in failure.
4. This warranty applies in the USA and Canada only. Check with your supplier to find out if international warranties apply.
Ki Mobility’s Responsibility
Ki Mobility’s only liability is to replace or repair, at our discretion, the covered parts. There are no other remedies, expressed or implied.
Your Responsibility
a. Notify Ki Mobility, via an authorized supplier, prior to the end of the warranty period and get a return authorization (RA) for the return or repair of the covered parts.
b. Have the supplier send the authorized return, freight pre-paid, to:
Ki Mobility
5201 Woodward Drive
Stevens Point, WI 54481
c. Pay any charges for labor to repair or install parts.
More Information on the Catalyst 4
See also:
Return Policy
This item is non-returnable for one of the following reasons:
- This item is custom-made by the manufacturer to suit your specific needs . Please review all specifications carefully before placing your order.
- Once production of your custom item has begun – the order is unable to be cancelled.
- For hygienic safety and per FDA regulations this item is non-returnable, even if unused.
- Once products are installed, the product is no longer returnable.
- Items that are purchased as "Open-Box" are non-returnable.
- Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.
