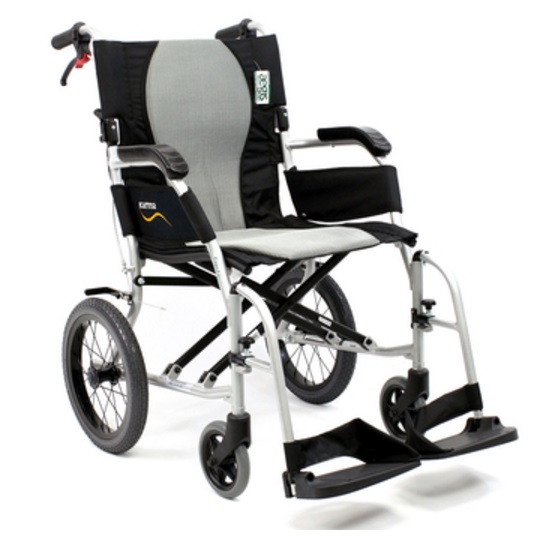

Ergo Flight TP
With its globally patented S-style ergonomic seat frame, the Ergo Flight is comfortable, while its 3-stage handle brakes offer convenience and safety.
The SpinLife Difference Includes:
Lifetime Limited Warranty
Quick-Ship Available
Price Match Guarantee
FREE Shipping
Features
- Weight Capacity: 220 lbs
- Removable Swing Away Footrests
- Folding Backrest/Folding Seat for transportation and storage
- 3-Stage handle brake
- Companion brakes on handles for added safety and comfort
- Quick Release Rear Wheel option available
- Globally patented ergonomic seat frame
Overview
The Ergo Flight TP by Karman Healthcare is lightweight and easily maneuverable. With 3-Stage handle brakes, the caregiver is able to use a light or firm grip to lock the patient in place. This unique frame is made from T-6 Aircraft Grade Aluminum, allowing it to be sturdy while only weighing 18 lbs! For the users comfort, the Ergo Flight TP features a patented S-Style Ergonomic seat frame, and a built in Silver Aegis Anti-Bacterial Cushion. Pockets behind the backrest and a small carry pouch on each fixed armrest with concaved armpads allow the user to have easy access to their belongings.
Measuring Guide
View Detailed Measurement Guide
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
- Back Height2
- Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
More Information on the Ergo Flight TP
See also:
Specs
| Overall Width: | 25,27" |
| Seat Widths: |
16" 18" |
| Product Weight: | 18 lbs. |
| Legrest Options: | Swing Away |
| Quick-Ship: | Yes |
| Seat to Floor Height: | 18.50" |
| Product Weight Range: | 15 lbs to 20 lbs |
Approximate Shipping Dimensions and Weights
| Product Weight: | 18 lbs. |
| Box 1 | |
| Shipping Weight: | 27.00 lbs. |
| Length: | 27.00" |
| Width: | 12.00" |
| Height: | 30.00" |
Ergo Flight TP Reviews
100% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the Ergo Flight TP.
Customer Reviews
Showing:
More Information on the Ergo Flight TP
See also:
Warranty Information
Karman warrants the wheelchair main frame against defects in materials and workmanship for the lifetime of the product, including crossbraces, side frames, backrests frames, from purchase date. This warranty is extended only to original purchasers of our products. Warranty is not transferable.
Parts are covered by a 6 month warranty. Materials which are subject to normal wear and which must be replaced/repaired are the owner’s responsibility and are not covered by warranty. Arm pads and upholsteries are not covered by warranty.
If within such warranty period, any such product is proven to Karman’s satisfaction to be defective, such product shall be repaired or replaced at Karman option. In no case are goods to be returned without first obtaining an R.M.A. (Returned Merchandise Authorization) number issued by Karman and that the part in question is returned insured with freight prepaid to Karman, within the period of warranty. Labor charge incurred in the installation or repair of the above-mentioned parts plus all freight charges are not included in the warranty.
If Karman does not have a completed Warranty Registration Card on file for the consumer’s product, then a copy of the invoice with date of purchase must be provided. The warranty is void on wheelchairs that have had the serial # tag removed or altered.
Products which have been subject to negligence, abuse, improper storage or handling, improper operation, unauthorized modifications or misuse are not covered by this warranty. Karman Healthcare will not warrant the frame or any parts damaged when the maximum weight limit is exceeded. Warranty applies in the U.S. only.
More Information on the Ergo Flight TP
See also:
Return Policy
- The following conditions apply:
- This item has a 20% Restocking Fee.
- You are responsible for the cost of return shipping. The product must new and unused and in the original packaging.
- All accessories and items that were included in the box must be returned.
- Items canceled after the product has already shipped will be considered a return.
- Delivery and service fees are not refundable.
- Mattresses ordered with beds are non-returnable.
- Custom-made by the manufacturer to suit your specific needs are non-returnable.
- An RA (Return Authorization) from SpinLife must be requested within 30 days of delivery.
- The item must be shipped back to the address noted on the RA within 15 days.
- Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.
- If delivered by a technician and delivery slip is signed and accepted the item is unable to be returned.
If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
