- Anterior, posterior and lateral support of the head and neck
- Swing out, adjustable arms for easy transfers
- Water resistant cover options
- Mounting hardware choices to meet specific functional needs
Manuals, Literature & Videos for the Whitmyer Heads Up Headrest System

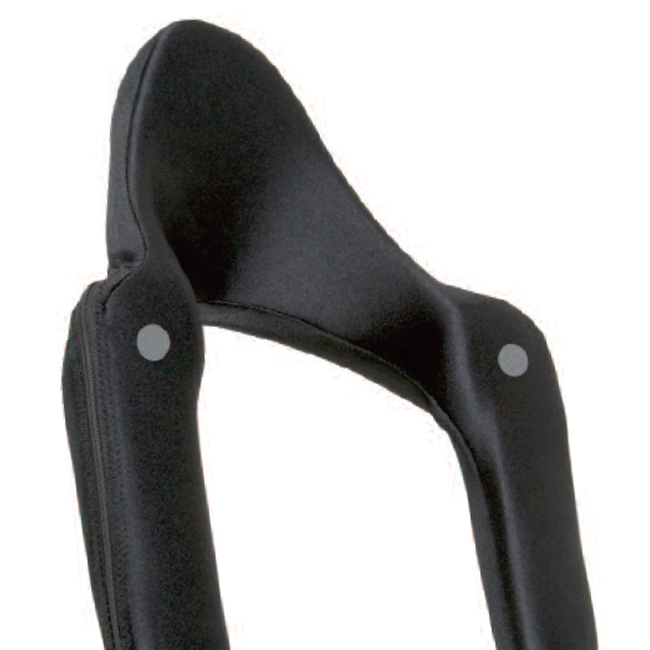

Overview of the Whitmyer Heads Up Headrest System
The JAY Heads Up head support has been created with an innovative design that allows for easier transfers and a wide array of positioning opportunities. The Heads Up has anterior and posterior support features as well as lower lateral adjustments that can accommodate varying body shapes. You can also receive your choice of cover options, either Lycra or Dartex Reversed, that each provide water-resistant materials and stretching ability.
What Makes This Different
The Heads Up support gives you an option when it comes to posterior head support. The support comes standard with a contoured cradle option that is easy to adjust and provides lateral cervical support to the user. The optional, single sub-occipital support gives proximal lateral cervical support by use of an independently adjustable pad.
Why We Like It
The anterior stabilization arms of the Heads Up helps the caregiver by providing an easy means of transferring the patient. The arms provide anterior and lateral stabilization of the shoulders and the trunk to help with head control. The arms also have a swing-out feature that allows for patient access while continuing to provide the head support needed.
What You Need to Know When Ordering
When purchasing the JAY Heads Up support, you must select the LINX mounting bracket for your use with your LINX hardware option. The available occipital pads are optional and need to be selected for inclusion with your Heads Up.
View Detailed Measurement Guide
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
- Back Height2
- Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
