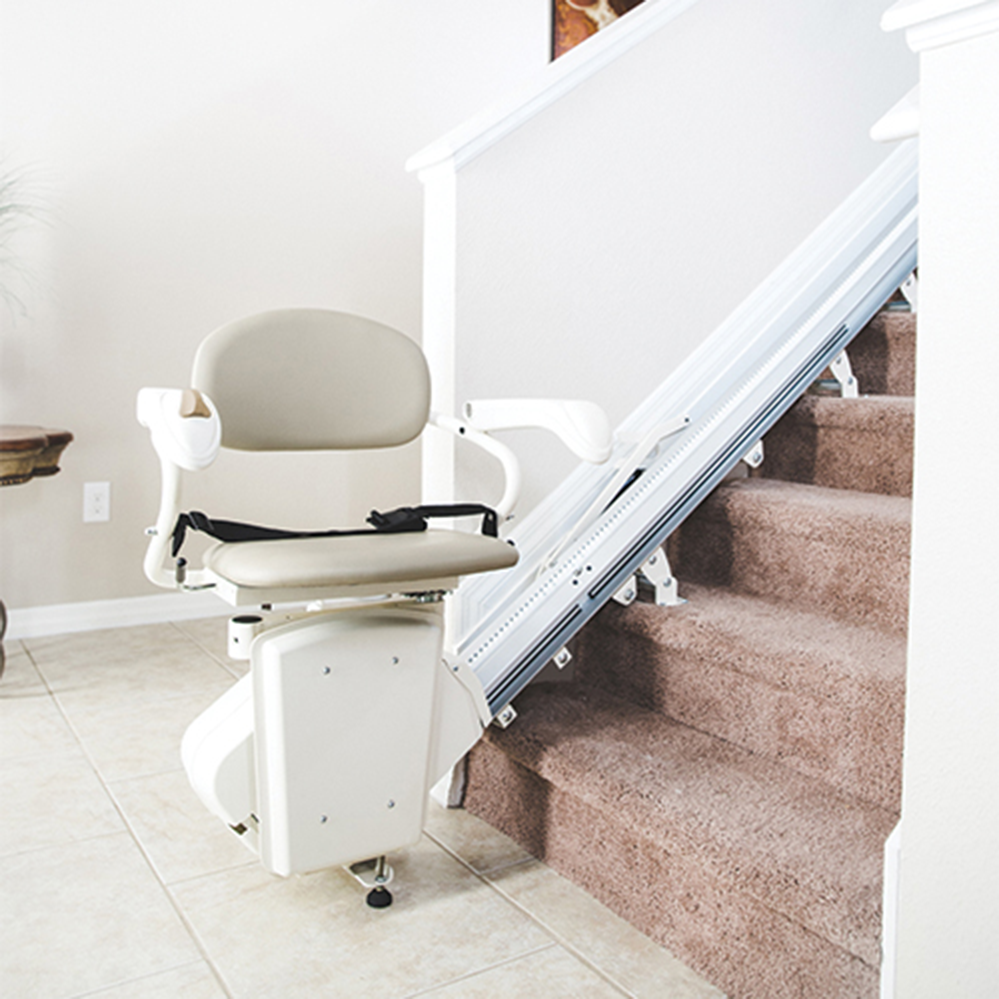

Pinnacle Stair Lift


5.0  from 1 reviews
100% recommended

A great stair lift for your home that has safety and value.

NEED HELP OR ADVICE?

Our Product Experts are here for you

1-800-850-0335

Harmar

(Model No. SL300)

Product Overview
$3,445.00
$4395
Customize

The SpinLife Difference Includes:

16' of Custom Track

Free Shipping

2 Year Limited Warranty

SHIPPING INFORMATION:
Leaves Warehouse In:
2-3 Business Days Details
Ground Shipping:
FREE for orders over $50!
Expedited Shipping:
GO
2nd Day: $17.95
Overnight: $31.95
Unavailable
SHIPPING INFORMATION
Leaves Warehouse In:
2-3 Business Days Details
Ground Shipping:
FREE for orders over $50!
Expedited Shipping:
GO
2nd Day: $17.95
Overnight: $31.95
Unavailable
OVERVIEW

Features

  • Safety sensors in the footrest help to detect obstacles
  • Up to 40 trips in a power outage.
  • Swivel seat at upper landing
  • No grease or lubrication needed – low maintenance

Key Specs

  • Weight capacity: 300 lbs.
  • Weight: 100 lbs.
View all specs

Manuals, Literature & Videos

Overview

The Pinnacle SL300 Stair Lift is a great product for your home at a great vale.  The Pinnacle SL 300 Stair Lift requires almost no maintenance to keep it running smoothly.The Pinnacle 300 Stair Lift has an innovative design, solid performance and reliability. And the patented drive system is what makes this stairlift different form all the rest.

Why We Like It

There is nothing not to like about the Pinnacle SL300 Stair Lift. The seat folds up compactly so it allows the ataircase to easilt used by other members of the household. Over-sized worm gears provide great stability. Lubrication free means less maintenance and less mess inyour home. Plus if the power goes out - you still have up to 40 trips.

What You Need To Know When Ordering

Please see the attached Pre-Install Survey and be ready to discuss your options with one of our Product Experts. The Pinnacle Stair Lift must be professionally installed. The installation takes 90 minutes or less. Please keep in mind that some states* require permits for the installation of the Pinnacle Stair Lift. Please be aware that installation of the Pinnacle Stair Lift may not be available in some regions. Contact a SpinLife Product Expert to confirm that service is provided in your area.

*States that we know require additional permitting: AL, CA, CT, FL, GA, MA, MI, NJ, NY, OR, WA.



* Custom configuration and installation charges will apply. Call a SpinLIfe Product Expert to discuss your needs.

Measuring Guide

Measuring your stairway correctly is essential to ensuring that your new stair lift will install easily and function safely and properly. Please follow the instructions below carefully.


Step 1: Determine Mount Side
Determine Stair Lift Mount Side
Mount Side: From the bottom of your staircase looking up, determine on which side you want the lift installed. Because the lift mounts to the stairs and not the wall, you may choose either side.

Step 2: Measure for Length of Track
Measure for Length of Stair Lift
Measurement A - Top to Bottom: Stand at the top of your stairs and extend your tape measure down the staircase. The tape measure should lightly touch each stair tread and the tip should touch the landing at the bottom of the steps. The measurement should be from the front edge (nose) of the top landing to the floor at the bottom landing.
Measurement B - Top to First Step: Measure from the front edge (nose) at the top of the landing to the front edge (nose) of the first step.

Step 3: Measure the Stair Tread & Rise
Measure the Tread & Rise for the Stair Lift
Measurement C - Stair Tread Length: Measure the tread of a stair from front edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a stair by measuring the length from the front edge (nose) of one step straight down to the next tread.
Number of Risers: Count the number of stair risers on your staircase.

Step 4: Measure Top & Bottom Obstruction Distances
Measure Top & Bottom Obstruction Distances
Measurement E - Top Obstruction Distance: Measure the distance from the front edge of the top step to any obstruction on the top landing. Common obstructions include doors, walls or railings.
Measurement F - Bottom Obstructon Distance: Measure the distance from the front edge of the bottom stair to any obstruction on the bottom landing.

Step 5: Measure Width of Stairs
Measure Stair Width
Measurement G - Stair Width: Measure the width of the stairs from side to side.

Need help? Please call a SpinLife Expert at 1-800-850-0335.

More Information on the Pinnacle Stair Lift

SPECS

Specs

Lift Seat Width: 19"
Lift Seat Depth: 16"
Distance From Wall: 11"
Lift Top Speed: 20 Feet per Minute
Incline Limit: 32 ° to 45 °

Approximate Shipping Dimensions and Weights

Product Weight: 100 lbs.

More Information on the Pinnacle Stair Lift

REVIEWS

Pinnacle Stair Lift Reviews

5.0

(1)
Features

5.0
Quality

5.0
Ease of Use

5.0
Meets Expectations

5.0
View All Reviews

100% of reviewers recommend this

These reviews are from SpinLife customers who have purchased and used the Pinnacle Stair Lift.

Customer Reviews

Showing:

More Information on the Pinnacle Stair Lift

WARRANTY

Warranty Information

 - 2-Year Parts

- 10-Year Gear

- 1-Year Battery

More Information on the Pinnacle Stair Lift

RETURNS

Return Policy

This item is non-returnable for one of the following reasons:

  • This item is custom-made by the manufacturer to suit your specific needs . Please review all specifications carefully before placing your order. Once production of your item has begun – the order is unable to be cancelled.
  • For hygienic safety and per FDA regulations this item is non-returnable, even if unused.
  • Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.

If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.

More Information on the Pinnacle Stair Lift

Customize & Buy

Installation

Choose One

Nationwide Professional Harmar Installation Only

+$645.00

Professional Harmar Measuring Service and Installation

+$745.00

Model

Choose One

Pinnacle Straight Stair Lift

Pinnacle Folding Rail - Left (30 business day lead time)

+$1,700.00

Pinnacle Folding Rail - Right (30 business day lead time)

+$1,700.00
