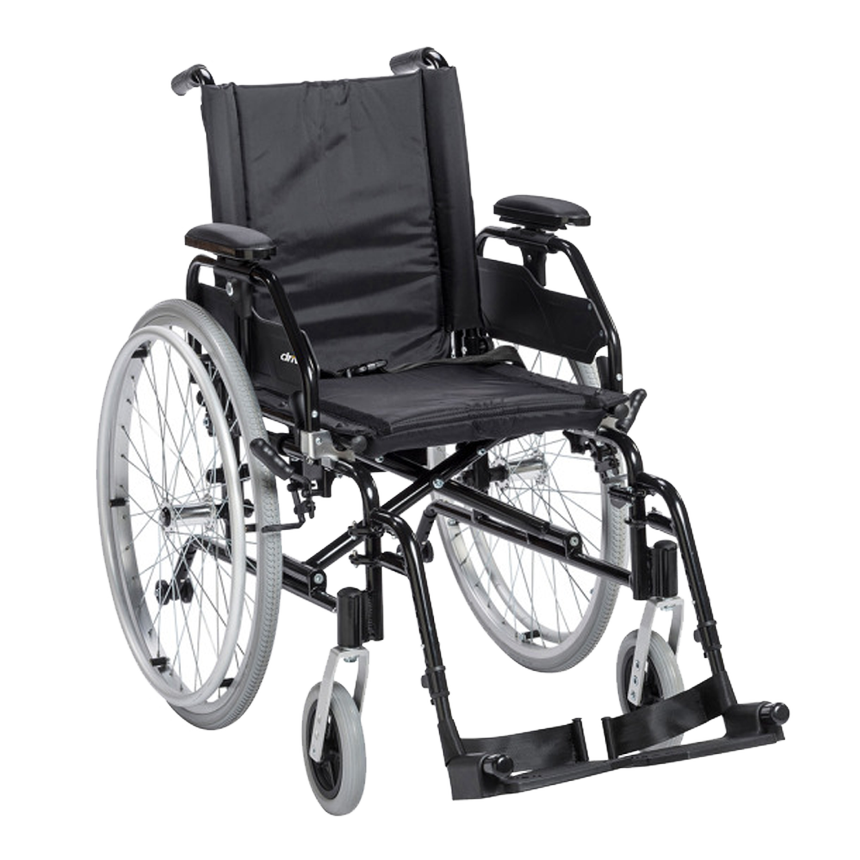

Lynx Ultra Lightweight Wheelchair

An Ultra-Lightweight folding wheelchair for those on the go

NEED HELP OR ADVICE?

Our Product Experts are here for you

1-800-850-0335

Drive Medical

(Model No. K5_LYNX)

Product Overview
$525.00
$871
Customize

The SpinLife Difference Includes:

Lifetime Limited Warranty

SHIPPING INFORMATION:
Leaves Warehouse In:
1-2 Business Days Details
Ground Shipping:
FREE for orders over $50!
Expedited Shipping:
GO
2nd Day: $0.00
Overnight: $0.00
Unavailable
SHIPPING INFORMATION
Leaves Warehouse In:
1-2 Business Days Details
Ground Shipping:
FREE for orders over $50!
Expedited Shipping:
GO
2nd Day: $0.00
Overnight: $0.00
Unavailable
OVERVIEW

Features

  • Lightweight Aluminum Frame
  • Quick release axle
  • Swing away footrest
  • Elevating footrest
  • Adjustable seat depth

Key Specs

  • Overall Width - Folded: 12.20"
  • Quick-Release Axles: Yes
  • Weight capacity: 275 lbs.
  • Weight: 29 lbs.
View all specs

Manuals, Literature & Videos

Overview

The Lynx Ultra Lightweight Wheelchair is the so easy to fold and store. The anti-tippers make if safe for any user with no worry of falling back. The wheel locks that push to lock are easy to use so the chair doesn’t move when sitting on an incline. The tires are also treaded  for safety of  not sliding on slipper floors.

What Makes This Different

Even being an ultra lightweight folding chair it is still designed for safety. The swing away footrest make it easier to get under tables and closer to surfaces.

Why We Like It

No reason to put up with bulky and heavy wheelchairs. It is built to be reliable and last a long time. Built with an aluminum frame makes it lightweight and durable.





Measuring Guide


View Detailed Measurement Guide
Seat Depth1
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
Back Height2
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
Rear Seat to Floor3
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
Hanger Angle4
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
Seat Width5
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
Wheel Camber6
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
Front Seat to Floor7
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
Footrest Width8
Measure from the inside of each legrest tubing the distance or desired distance between legrests.
Center of Gravity9
Measure from the front of the seat back post to the center of the rear axel.
Seat to Footrest Length10
Measure from the edge of the seat upholstery to the top rear of the footrest.
Backrest Angle11
Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.

More Information on the Lynx Ultra Lightweight Wheelchair

SPECS

Specs

Overall Width - Folded: 12.20"
Overall Depth - Add to Seat Depth: 18"
Front Caster: 7"
Seat Widths: 16"
18"
20"
Product Weight: 29 lbs.
Legrest Options: Elevating
Swing Away
Quick-Ship: Yes
Seat to Floor Height: 19.50"
Seat to Floor Heights: 17.5" to 19.5"
Frame Type: Folding
Seat Depths: 16"
17"
18"
Front Seat to Floor Height: 17.5" to 19.5"
Rear Seat to Floor Height: 17.5" to 19.5"
Hemi Height Option: No
Back Height: 16"
Angle-adjustable Back: Yes
Fold-down back for easy transport: No
Reclining Back Option: No
Rear Wheel Size: 24"
Pneumatic (air-filled) tire option: No
Quick-Release Axles: Yes
One-Arm Drive Option: No
Upholstery Options: No
Armrest Options: Flip Back
Height Adjustable
Product Weight Range: 20 lbs to 30 lbs

Approximate Shipping Dimensions and Weights

Product Weight: 29 lbs.
Box 1
Shipping Weight: 29.00 lbs.
Length: 43.90"
Width: 23.80"
Height: 35.50"

More Information on the Lynx Ultra Lightweight Wheelchair

WARRANTY

Warranty Information

Drive Medical Limited Lifetime Wheelchair Warranty

If you have a problem with your wheelchair, simply call one of our expert customer service representatives; SpinLife.com will have the parts shipped to you - free of charge. Every effort will be made to return your wheelchair to working condition in the shortest time possible.


The following parts will be repaired or replaced at our discretion, free of charge, for the following allowable time periods from the date of purchase.


Lifetime:

All Durable Parts


Exclusions:

Tires, Upholstery, other non-durable parts


All of the previous parts are covered for defect in material and/or workmanship. Any abuse or intentional misuse of the wheelchair will void the warranty.

More Information on the Lynx Ultra Lightweight Wheelchair

RETURNS

Return Policy

  • The following conditions apply:
    • This item has a 20% Restocking Fee.
    • You are responsible for the cost of return shipping and the product must be in the original packaging.
    • All accessories and items that were included in the box must be returned.
    • Items canceled after the product has already shipped will be considered a return.
    • Delivery and service fees are not refundable.
    • Mattresses ordered with beds are non-returnable.
    • An RA (Return Authorization) from SpinLife must be requested within 10 business days of delivery.
    • The item must be shipped back to the address noted on the RA within 15 business days.
    • Once approved, your refund, minus any restocking and freight fees, will be issued to your original form of payment.

If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.

More Information on the Lynx Ultra Lightweight Wheelchair

Customize & Buy

Seat Width

Choose One

16"

18"

(On Backorder until 10/31/2022)

20"

+ $25.00

Legrests

Choose One

Swing-Away Footrests

Elevating Legrests

+ $22.00
