Top End Pro-2 All Sport

Manuals, Literature & Videos for the Top End Pro-2 All Sport

• Order Form

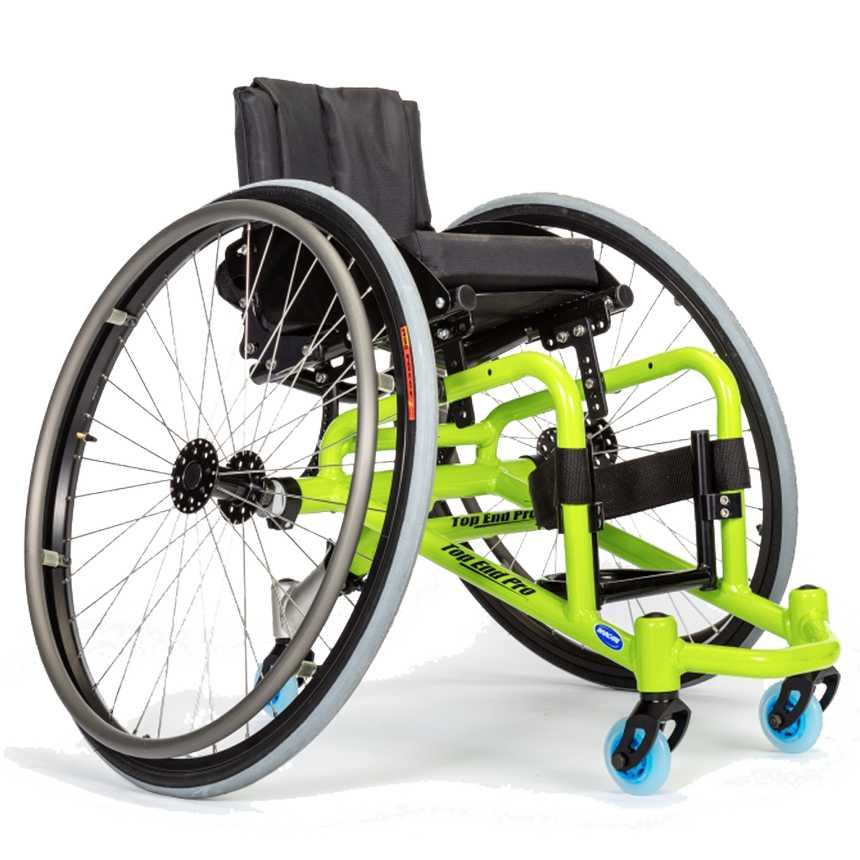

Overview of the Top End Pro-2 All Sport

The Top End Pro-2 All Sport Chair is made with all sports in mind. If you want to get in the game, this chair is for you. This chair is ideal for playing basketball, tennis, softball, table tennis, badminton, floor hockey and more. The Pro-2 comes in 5 seat widths; 10" (green frame), 12" (yellow frame), 14" (white frame), 16" (red frame), and 18" (blue frame). This chair has lots of adjustments which make it perfect for clubs, school programs, sports teams and aspiring athletes.

What Makes This Different
Not only is the Pro-2 All Sport great for teams, it also has the 5K Freewheel upgrade option. This is an upgrade that transforms the chair in to a chair capable of road racing. It is easy to take on and off, so that you can be ready for anything.

What You Need to Know
The Pro-2 All Sport features a number of adjustable design elements to accommodate many athletes, such as adjustable center of gravity (2.5" -5"), adjustable seat depth (13"-17"), and adjustable axle position. The adjustable seat height allows the front seat height to go from 18" to 20"  and the rear from 15" to 20", while the back height can be adjusted from 11" - 14". The standard footrest is a clamp-on tubular recessed footrest that can be taken off and also height adjusted. The Pro-2 comes standard with an 18" wheelbase, 15° fixed camber and 25" high performance sport wheels with high pressure tires. Additional standard features include a 2" seat cushion, side guards, rear frame protector, removable single swivel anti-tip bar and positioning strap.

• The Top End Pro-2 All Sport Wheelchair is designed for the aspiring athlete who wants to play basketball, tennis, softball or any sport played on a court surface.

• It is available in 10”, 12”, 14″, 16″ or 18″ seat widths with quick and easy adjustments.

• Ready to play right out of the box and includes 25” high performance sport wheels, high pressure tires, a seat cushion, side guards, rear frame protector, single swivel anti-tip bar and positioning strap.

*23 pounds frame weight is based upon a completely assembled chair with standard rear wheels, upholstery and footrest

**Minor Assembly Required: attaching the base and seat frames; installing the seat height adjustment brackets, anti-tip assembly, footrest, and rear wheels.

Measuring Guide

Seat Depth¹

Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Optimal contact between the legs and the seat increases stability for the body.

Back Height²

Measured from the seat base to the top of the chair back. Sport users need enough height for upper body support, yet low enough to allow the arms and trunk to rotate freely.

Rear Seat to Floor³

Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the seat. Sport chairs usually have more dump for extra upper body stability.

Hanger Angle⁴

Determines how far the toes extend away from the body, measured from the horizontal. Sport users often use very tight angles to be able to rotate in the smallest possible space.

Seat Width⁵

Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Sport chairs are typically as narrow as possible to save weight which improves agility.

Wheel Camber⁶

Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical sport chair uses nine to twelve degrees of camber.

Front Seat to Floor⁷

Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the chair will be foot-propelled.

Footrest Width⁸

Measure from the inside of each legrest tubing the distance or desired distance between legrests.

Center of Gravity⁹

Measure from the front of the seat back post to the center of the rear axel.

Seat to Footrest Length¹⁰

Measure from the edge of the seat upholstery to the top rear of the footrest.

Backrest Angle¹¹

Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
