Top End Crossfire All Terrain
This wheelchair is designed specifically for outdoor adventures; lots of ground clearance and big casters.
Top End Crossfire All Terrain
This wheelchair is designed specifically for outdoor adventures; lots of ground clearance and big casters.
NEED HELP OR ADVICE?
Our Product Experts are here for you
1-800-850-0335The SpinLife Difference Includes:
Easy-To-Fold Design
Lifetime Limited Warranty
Made in the USA
FREE Shipping
Low Price Guarantee
Features
- Large 25” Knobby Tires
- Adjustable Back Angle
- Durable Aluminum Frame
- Optional Quad-Release Axles
- Many Color Choices
Key Specs
- Quick-Release Axles: Yes
- Weight capacity: 250 lbs.
- Starting Weight: 19.5 lbs.
Manuals, Literature & Videos
Overview

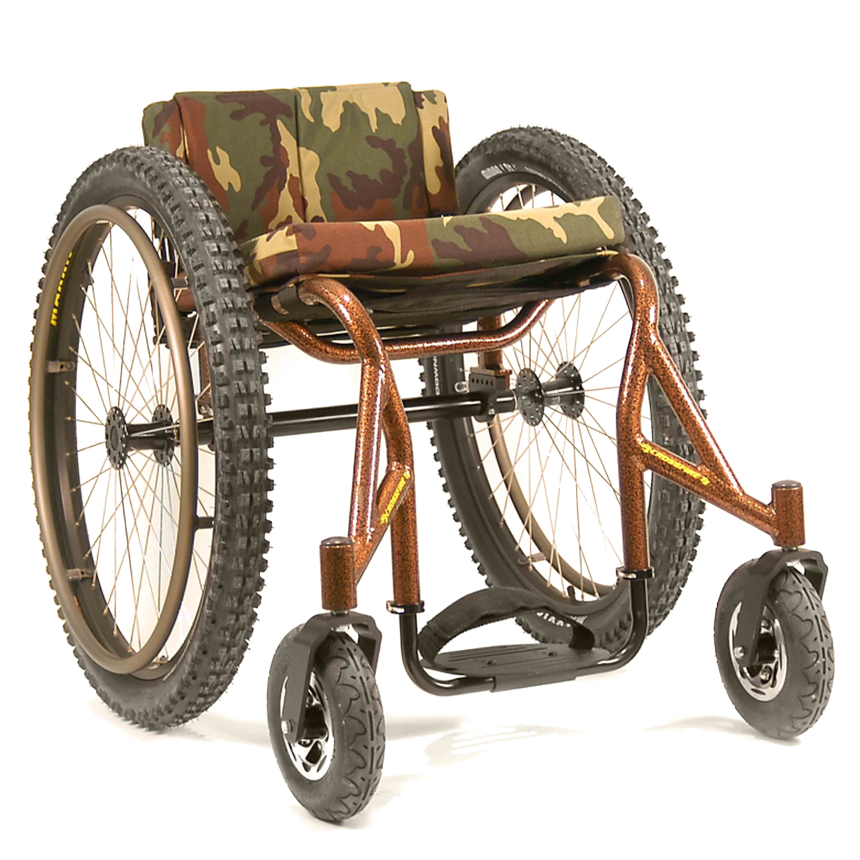

The Invacare Top End Crossfire All Terrain Wheelchair is designed to leave some serious tracks. Do you like to hike, fish, camp, hunt, kayak, garden or go to the beach? You can do it all with the Crossfire All Terrain Wheelchair. It is built of 6061T6 aluminum and equipped with enormous 25” x 2.75” knobby wheels and huge 8” x 2” front casters for maximum traction on any terrain..
Engineered for lots of ground clearance, plus forward and side-to-side stability, you can conquer the toughest terrain. The Crossfire All Terrain Wheelchair will liberate both body and soul. With its large ground clearance, and forward and side-to-side stability the Crossfire All Terrain is ideal for an active outdoor adventurer.
Measuring Guide
- Seat Depth1
- Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Optimal contact between the legs and the seat increases stability for the body.
- Back Height2
- Measured from the seat base to the top of the chair back. Sport users need enough height for upper body support, yet low enough to allow the arms and trunk to rotate freely.
- Rear Seat to Floor3
- Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the seat. Sport chairs usually have more dump for extra upper body stability.
- Hanger Angle4
- Determines how far the toes extend away from the body, measured from the horizontal. Sport users often use very tight angles to be able to rotate in the smallest possible space.
- Seat Width5
- Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Sport chairs are typically as narrow as possible to save weight which improves agility.
- Wheel Camber6
- Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical sport chair uses nine to twelve degrees of camber.
- Front Seat to Floor7
- Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the chair will be foot-propelled.
- Footrest Width8
- Measure from the inside of each legrest tubing the distance or desired distance between legrests.
- Center of Gravity9
- Measure from the front of the seat back post to the center of the rear axel.
- Seat to Footrest Length10
- Measure from the edge of the seat upholstery to the top rear of the footrest.
- Backrest Angle11
- Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump. Find a sport chair
More Information on the Top End Crossfire All Terrain
See also:
Specs
| Seat Widths: |
14" 15" 16" 17" 18" 19" 20" |
| Product Weight: | 20 lbs. |
| Legrest Options: | Fixed |
| Seat to Floor Heights: | 19" to 21" |
| Frame Type: | Rigid |
| Seat Depths: |
14" 15" 16" 17" 18" 19" 20" |
| Hemi Height Option: | No |
| Back Height: |
9" 10" 11" 12" 13" 14" 15" 16" 17" 18" 19" 20" |
| Angle-adjustable Back: | Yes |
| Fold-down back for easy transport: | Yes |
| Reclining Back Option: | No |
| Rear Wheel Size: |
24" 25" |
| Camber Angle: | 0 ° to 9 ° |
| Pneumatic (air-filled) tire option: | Yes |
| Quick-Release Axles: | Yes |
| One-Arm Drive Option: | No |
| Upholstery Options: | Yes |
| Armrest Options: | Fixed Height |
| Removable Legrests: | No |
| Expedited Shipping Available: | Yes |
| Product Weight Range: | 15 lbs to 20 lbs |
Approximate Shipping Dimensions and Weights
| Product Weight: | 19.5 lbs. |
| Box 1 | |
| Shipping Weight: | 43.00 lbs. |
| Length: | 38.00" |
| Width: | 23.00" |
| Height: | 23.25" |
