TiLite Tr


4.8
6 reviews  100% of reviewers recommend this!

Not Available

The product that you were searching for is not currently available at SpinLife.com.
To find a comparable product at SpinLife.com please click here or call our product professionals at 800-850-0335.

TiLite Tr
TiLite
(Model No. TR)
PRODUCT OVERVIEW Customize
OUR LOW PRICE INCLUDES:
  • Easy-To-Fold Design
  • Lifetime Limited Warranty
  • Made in the USA
  • Overview
    +
    -

    Features

    • 3-2.5 Seamless Aerospace Grade Titanium
    • Compact Frame Geometry
    • Complete Customization
    • Color Anodized Components Available

    Key Specs

    • Quick-Release Axles: Yes
    • Weight capacity: 250 lbs.
    • Starting Weight: 9.9 lbs.
    • View All Specs

    Manuals, Literature & Videos for the TiLite Tr

    Overview of the TiLite Tr

    Sorry! The TiLite Tr has been discontinued.

    TiLite TR Series 3

    This product has been discontinued by the manufacturer. However, we recommend that you check out the TiLite TR Series 3. It is TiLite's newest, most efficient and lightest weight rigid chair available.

    • View the TiLite TR Series 3
    • View all TiLite Ultralightweight Wheelchairs

    For your TiLite Tr:

    • Service

    NEW! View frame, tire & upholstery colors right on the chair.
     Click here to try out the TiLite Color Configurator.

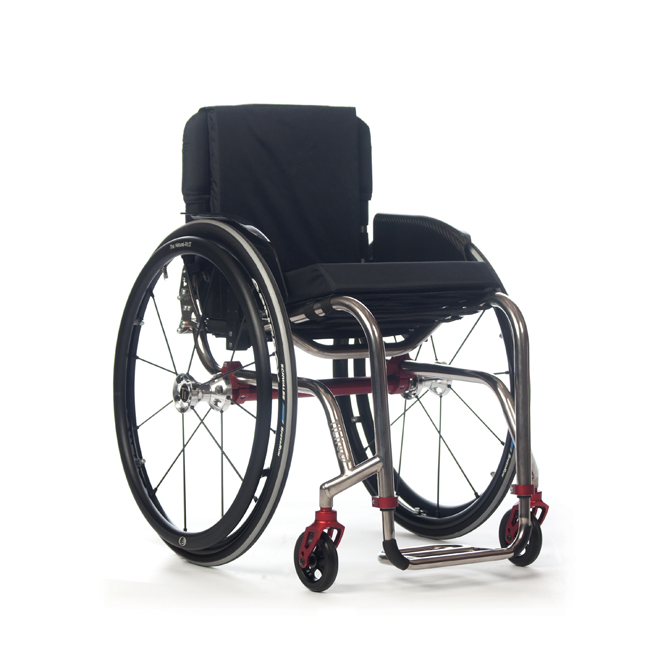

    The TiLite TR titanium wheelchair combines innovative design with excellent performance. The 1” titanium tubing has a super thin wall and is sculpted into a completely custom “Dual-tube” frame that is specifically engineered to maintain rigidity. The durable titanium easily absorbs road vibration. The TR ultralight can easily be adjusted to fine tune the chair, without sacrificing weight or durability. The TR features an array of options and an eye-catching combination of materials and style that yield high performance.

    *Weight is based on a 16" x 16" wheelchair and all standard features except rear wheels and wheel locks. For reference, a pair of standard 24" rear wheels weighs 7.6 lbs. and a pair of standard wheel locks weighs 0.9 lbs.

    **Suggested replacement is the TiLite TR Series 3.

    Measuring Guide


    View Detailed Measurement Guide
    Seat Depth1
    Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
    Back Height2
    Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
    Rear Seat to Floor3
    Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
    Hanger Angle4
    Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
    Seat Width5
    Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
    Wheel Camber6
    Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
    Front Seat to Floor7
    Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
    Footrest Width8
    Measure from the inside of each legrest tubing the distance or desired distance between legrests.
    Center of Gravity9
    Measure from the front of the seat back post to the center of the rear axel.
    Seat to Footrest Length10
    Measure from the edge of the seat upholstery to the top rear of the footrest.
    Backrest Angle11
    Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.

    More Information on the TiLite Tr

  • Specs
    +
    -

    Specifications for the TiLite Tr

    Frame Type: Rigid
    Seat Widths: 12"
    13"
    14"
    15"
    16"
    17"
    18"
    Quick-Release Axles: Yes

    Approximate Shipping Dimensions and Weights

    Product Weight: 9.9 lbs.
    Box 1
    Shipping Weight: 40.00 lbs.
    Length: 25.00"
    Width: 34.00"
    Height: 23.00"

    Manuals & Literature

    More Information on the TiLite Tr

  • Reviews
    +
    -

    TiLite Tr Reviews

    4.8
    Rating Breakdown

    Rating Breakdown


    5 star
    100%
    (6)

    100% of reviewers recommend this!

    Features
    (4.7)
    Quality
    (4.8)
    Ease of Use
    (5.0)
    Meets Expectations
    (4.8)
    These reviews are from SpinLife customers who have purchased and used the TiLite Tr.

    Customer Reviews

    Showing:
    View All Reviews

    More Information on the TiLite Tr

  • Warranty
    +
    -

    Warranty Information for the TiLite Tr

    A. FRAME - LIFETIME

       TiLite warrants the wheelchair frame (including the cross-braces, if any) against defects in materials andworkmanship for the lifetime of the original user of the wheelchair. The expected
    life of the frame is five years. TiLite warrants all TiLite-made wheelchair components (including, but not limited to, armrest assemblies, backrest, assemblies, footrest assemblies,
    camber tubes and plugs and caster forks) against defects in materials and workmanship for one (1) year from the date of purchase, except as provided below.

    B. COMPONENTS - ONE (1) YEAR

    C. LIMITATIONS AND EXCLUSIONS

       This warranty does not cover:

          a. tires and tubes for front or rear wheels, upholstery (including cushions, seat slings, backrest upholsteryand armrest upholstery), or push-handle or stroller handle grips; or

          b. damage arising from normal wear and tear or from other circumstances beyond TiLite’s control; or

          c. any labor or shipping charges incurred in replacement part installation or repair of this product; or

          d. TiLite Designs Unlimited frames and frame components, unless TiLite, in its sole discretion, determines that the Designs Unlimited frame or frame component was defectively manufactured.

       This warranty is VOID if TiLite, in its sole discretion, determines that:

          a. the original TiLite serial number tag has been removed, altered or defaced; or

          b. the wheelchair has been subjected to negligence, accident, improper maintenance, storage or operationas required by your TiLite Owners Manual, commercial or institutional use, misuse or abuse, including,but not limited to, exceeding the maximum weight limit of 250 pounds or using the wheelchair with tie downs or locking, clamping or other restraint systems related to the use of the wheelchair in a motor vehicle; or

          c. the wheelchair has been damaged by improper repairs or repairs made to any component without the express written consent of TiLite; or

          d. the wheelchair has been modified without TiLite’s express written consent, including, but not limited to, modification through the use of unauthorized parts or attachments.

       This warranty applies only to the original intended user of the wheelchair.

    D. OUR RESPONSIBILITY

       TiLite’s sole responsibility is to repair or replace, in our sole discretion, the covered components of the wheelchair.

    E. FOR WARRANTY SERVICE

       Contact a customer service representative from Spinlife.com

    More Information on the TiLite Tr

  • Returns
    +
    -
    SpinLife Return Policy for the TiLite Tr

    Please inspect your product upon delivery. If the product is damaged or is not the correct product, please refuse the delivery. If your item was delivered without a signature and is damaged or incorrect please call SpinLife Customer Service.

    Custom built wheelchairs are made by the manufacturer to fit your specific needs and body measurements and are therefore non-returnable.


    If you have questions about this item please call a SpinLife Expert at 1-800-850-0335.
