EZ-GO / EZ-GO Deluxe
The tightest turning radius and highest seat back in a portable power chair




















EZ-GO / EZ-GO Deluxe
The tightest turning radius and highest seat back in a portable power chair
NEED HELP OR ADVICE?
Our Product Experts are here for you
1-800-850-0335The SpinLife Difference Includes:
Free Shipping for Orders over $50
Lifetime Limited Warranty
White Glove Available
In-Home Service

Features
- High 18" seat back
- Rear wheel drive for intuitive steering
- Weight Capacity: up to 300 lbs
- Tight 23" turning radius
- Ultra-durable steel frame
- Compact size and easy disassembly for storage and transportation
Key Specs
- Drive Range: 12.00 miles
- Drive Range: 9.00 miles
- Top Speed: 4.00 mph
- Heaviest Piece: 35 lbs.
- Heaviest Piece: 42 lbs.
- Heaviest Piece: 54 lbs.
- Turning Radius: 23.00"
- Weight capacity: 300 lbs.
- Weight: 113 lbs.
Manuals, Literature & Videos
Overview

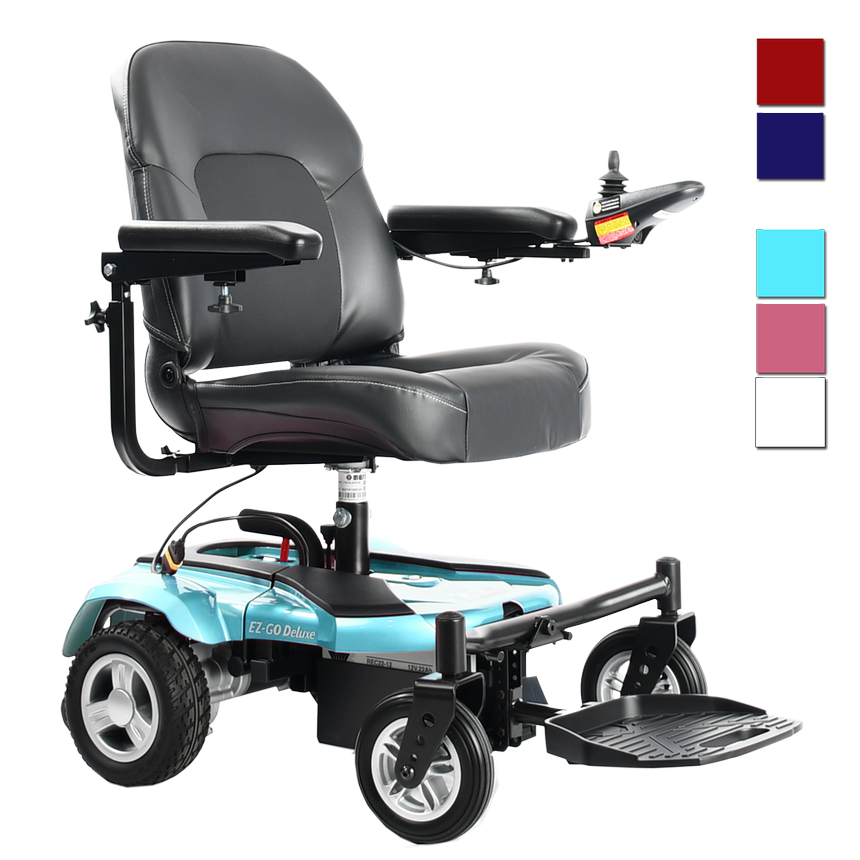

The EZ-GO Travel Power Chair by Merits Health is an ideal portable power chair for getting out and about. The lightweight chair easily disassembles into three pieces for convenient transport into your car, van or storage area. Whether you’re on a weekend trip or cruise vacation, the portable EZ-GO will keep you independent.
What Makes This Different
There are two versions of the EZ-GO: the EZ-GO and EZ-GO Deluxe. Both have a maximum speed of 4 miles per hour, a tight 23” turning radius and a generous 18” wide x 16” deep x 18” high seat making it the highest seat back on a portable power chair.
The differences between the two models are in the weight capacity, drive range, and ground clearance and available colors. The EZ-GO has a 250 lbs. weight capacity, up to 9 mile drive range, a 1.8” ground clearance, and is available in red or blue. The Deluxe version is more robust with a 300 lbs. weight capacity, up to 12 miles drive range, higher 2.25’ ground clearance and comes in white, pink or turquoise.
EZ-GO | EZ-GO Deluxe |
---|---|
250 lbs. weight capacity | 300 lbs. weight capacity |
Up to 9-mile drive range | Up to 12-mile drive range |
1.8” ground clearance | 2.25” ground clearance |
Comes in Red or Blue | Comes in White, Turquoise or Pink |
Why We Like It
The simplicity of the EZ-GO Travel Power Chair’s disassembly and transportability make it a great secondary power chair for when you are traveling and need a smaller frame. We like the handle on the base underneath the seat which makes it easy to take apart for travel. The EZ-GO’s heaviest piece is just 42 pounds, while the EZ-GO Deluxe’s heaviest piece is 54 lbs. Though this chair features lightweight construction, the durable steel frame ensures that you stay supported wherever you go.
What You Need To Know When Ordering
Curbside delivery is free. Your new EZ-GO will arrive disassembled in one large, heavy box. Portable Power Wheelchairs are meant to go together easily for transport. No tools are required and the 3 pieces click together. However, if you think you may need assistance with carrying, unpacking and assembling your new power chair, you may choose our White Glove Delivery to have it brought to your home and assembled by certified technicians.
Measuring Guide
![]() |
|
![]() |
![]() |
Seat
Depth1 Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg. Back Height2 Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration. Hanger Angle3 Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular. Seat Width4 Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant. Front Seat to Floor5 Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never foot-propelled by the user - so excluding the additional two inch footrest height for propelling is very rare. |
More Information on the EZ-GO / EZ-GO Deluxe
See also:
Specs
EZ-GO | EZ-GO Deluxe | |
Drive Range: | 9.00 miles | 12.00 miles |
Top Speed: | 4.00 mph | 4.00 mph |
Disassembles: | Yes | Yes |
Heaviest Piece: | 42 lbs. | 54 lbs. |
Turning Radius: | 23.00" | 23.00" |
Ground Clearance: | 1.80" | 2.25" |
Tire Type: | Solid | Solid |
Maximum Incline Rating: | 6 º | 6 º |
Drive Type: | Rear Wheel Drive | Rear Wheel Drive |
Foldable: | No | No |
Armrest Options: |
Height Adjustable Flip-Back |
Height Adjustable Flip-Back |
Legrest Options: | Footplate | Footplate |
Seat Options: | Stadium Seat | Stadium Seat |
Power Chair Seat Width: | 18" | 18" |
Seat Depths: | 16" | 16" |
Back Height: | 18" | 18" |
Seat Height: | -- | -- |
Maximum Seat to Floor Height: | -- | -- |
Overall Width: | -- | -- |
Overall Length: | -- | -- |
Joystick Options: |
Right Left |
Right Left |
Battery Type: | Two 12V, 14AH | Two 12V, 22AH |
Batteries Included: | Yes | Yes |
Battery Charger Type: | Off Board | Off Board |
Drive Wheel Size: | 8" | 8" |
Caster Size: | 6" | 7" |
Base Weight: | -- | -- |
Standard Seat Weight: | -- | -- |
Battery Pack Weight: | -- | -- |
Weight Without Batteries: | -- | -- |
Controller Type: | PG VSI 50A | PG VSI 50A |
Suspension: | No | No |
Handles Thresholds of 2" or More: | No | No |
Seat Width Ranges: | 18" - 19" | 18" - 19" |
Approximate Shipping Dimensions and Weights
Product Weight: | 113 lbs. |
Box 1 | |
Shipping Weight: | 115.00 lbs. |
Length: | 36.00" |
Width: | 24.00" |
Height: | 24.00" |
EZ-GO / EZ-GO Deluxe Reviews
100% of reviewers recommend this
These reviews are from SpinLife customers who have purchased and used the EZ-GO / EZ-GO Deluxe.
Customer Reviews
Showing:
More Information on the EZ-GO / EZ-GO Deluxe
See also:
Warranty Information
Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).
For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
